Iscar
5796072

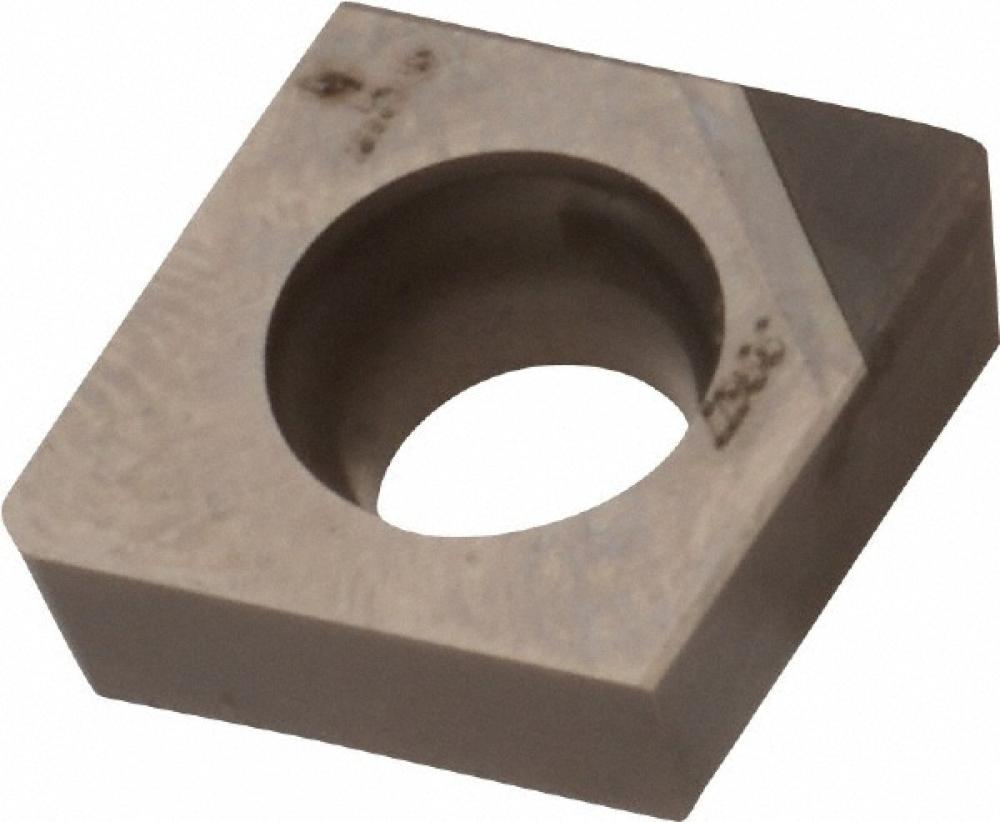

CCMT 3-2T IB55
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Material | PCBN |
| Size | 0.38 |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.03 |
| Style | CCMT |
| Thickness (Inch) | 0.16 |
| Short Description | ISCAR CCMT 3-2T IB55 CBN INSERTS |
| Long Description | 80° rhombic inserts with CBN single top corner brazed tip, used for finishing forged steel. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.38 |
| Maximum Depth of Cut (Decimal) | 0.02 |
| Minimum Feed (Decimal) | 0.002 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Hardened Materials+Cast Iron |
| Clearance Angle | 7 deg Positive |
| Machining Application | Finishing-Semi Roughing |
| Country of Origin | Switzerland |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0310 |
| Family Short Description | 80° Rhombic Inserts with a Single CBN Top Corner Tip and 7° Clearance for Machining Hardened Steel |
| Height | 0.51 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.29 OZ |
| Width | 1.77 Inch |
| Insert Coating | Uncoated |
| APP1Name | Ext. 80° Diamond 91° Approach |
| FamilyName | CCGW/CCMT (CBN) |
| Max. Depth Of Cut | 0.0200 |
| Insert Style | CCMT |
| Insert Shape | 80° Diamond |
| Insert Thickness | 0.1560 |
| Weight (OZ) | 0.28924 |
| Width (Inch) | 1.77 |
| Cutting Edge Material | PCBN |
| Measurement Type | Inch |
