Iscar
5900023

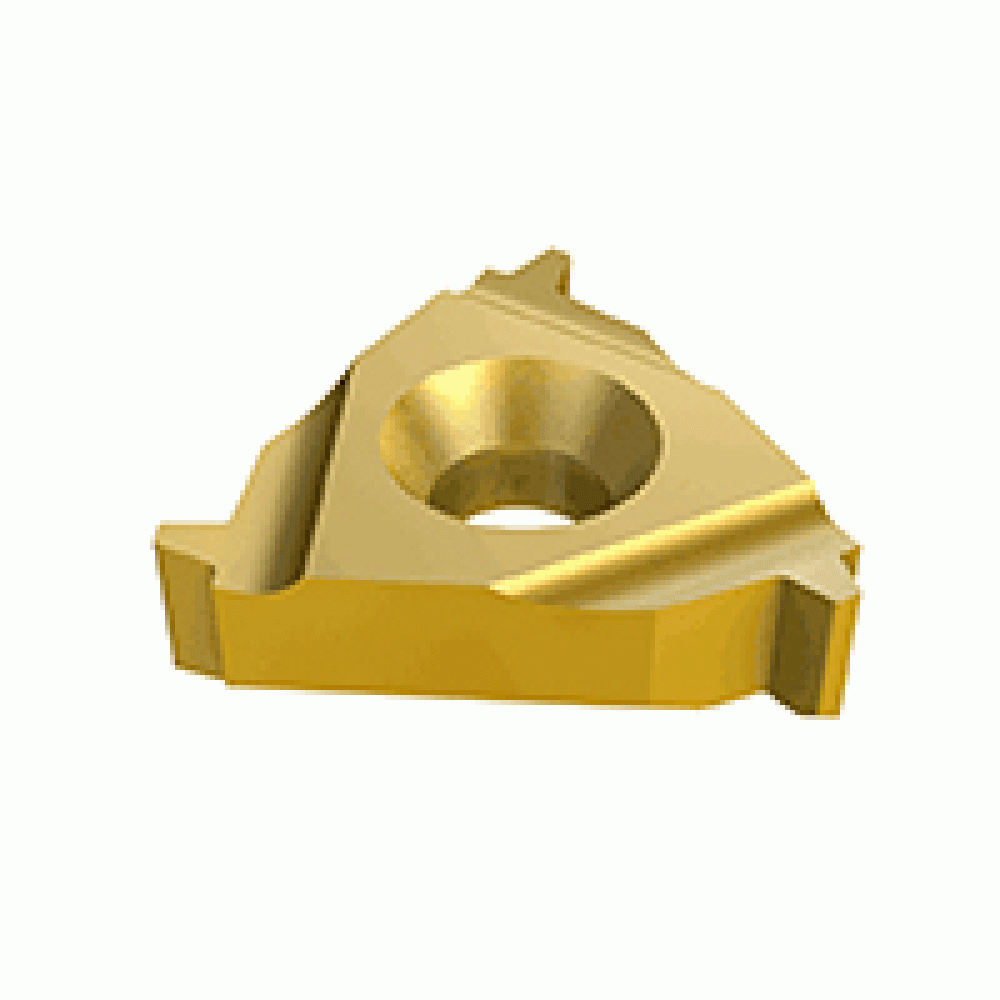

22EL 5 STACME IC50M
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Insert Hand | Left |
| Grade | IC50M |
| Long Description | External STUB ACME lay down threading inserts, for control valves and shallow ACME profile, when normal ACME is too deep due to wall thickness. |
| Short Description | ISCAR 22EL-5-STACME-IC50M |
| Insert Designation | 22EL |
| Material | Carbide |
| APP1Name | External Threading |
| FamilyName | ER/L-STACME |
| Threads per Inch | 5.0 |
| COO | Israel |
| Size | 0.5000 |
| External/Internal | External |
| Weight (OZ) | 0.49383 |
| Width (Inch) | 2.2 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
