Iscar
5900709
16ER 8 STACME IC50M
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Insert Hand | Right |
| Grade | IC50M |
| Long Description | External STUB ACME lay down threading inserts, for control valves and shallow ACME profile, when normal ACME is too deep due to wall thickness. |

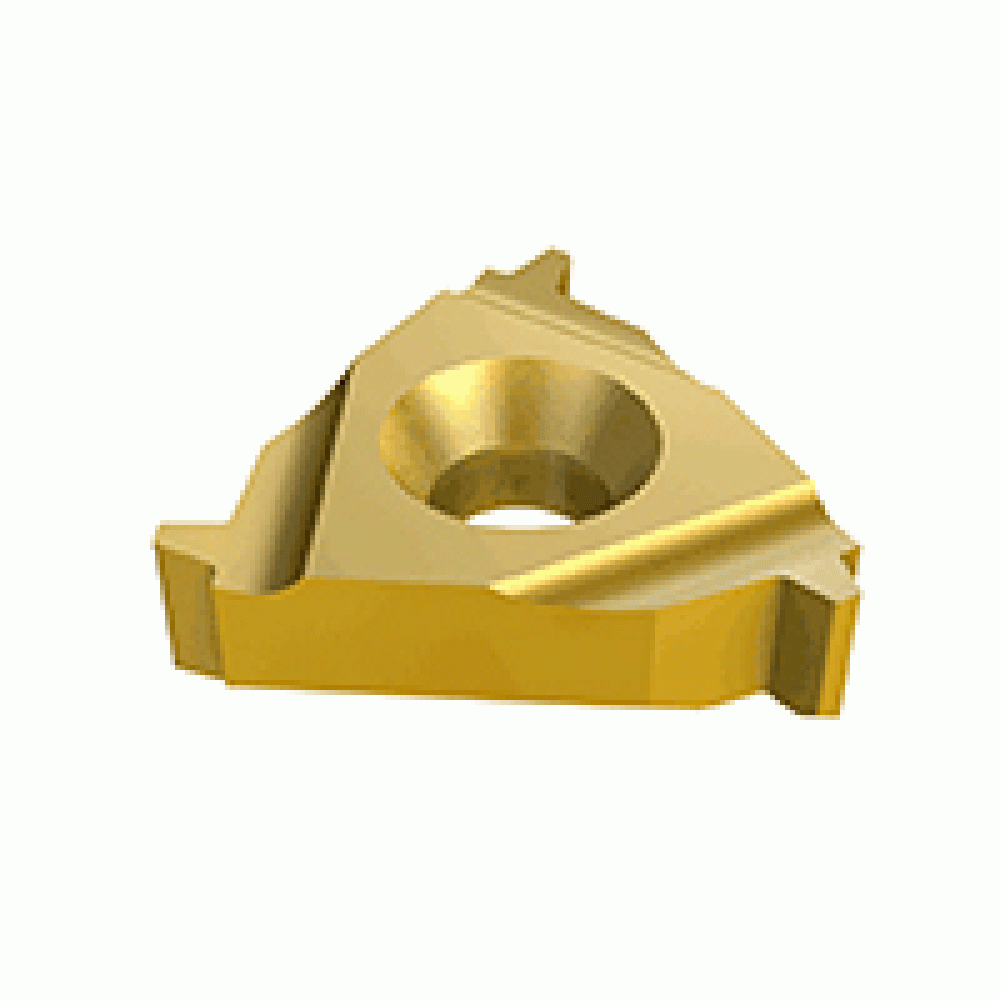

| Short Description | 16ER-8-STACME-IC50M ISCAR THREADING INSERTS - GROUND |
| Insert Designation | 16ER |
| Material | Carbide |
| APP1Name | External Threading |
| FamilyName | ER/L-STACME |
| Threads per Inch | 8.0 |
| COO | Israel |
| Size | 0.3750 |
| External/Internal | External |
| Weight (OZ) | 0.37037 |
| Width (Inch) | 0 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
