Iscar
5901384
06IR 28 BSPT IC228
Specifications
| Coating/Finish | TiCN+TiN |
|---|---|
| Insert Hand | Right |
| Grade | IC228 |
| Long Description | Internal BSPT (British standard pipe), full profile laydown threading inserts. IR/L - Ground periphery and rake, IRB - With a chipformer and peripherally ground, IRM - With a chipformer. Application: steam, gas and water pipes. |

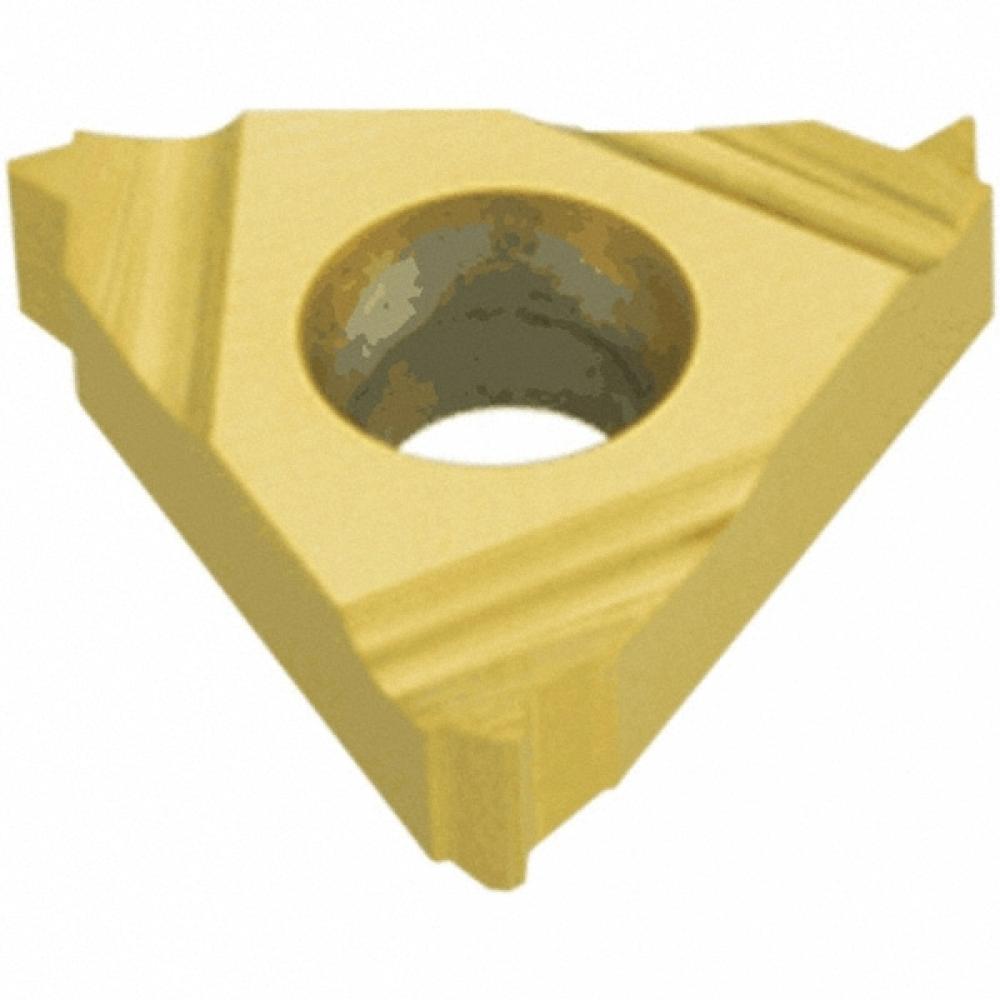

| Short Description | 06IR-28-BSPT-IC228 ISCAR THREADING INSERTS - GROUND |
| Insert Designation | 06IR |
| Material | Carbide |
| APP1Name | Internal Thread Milling |
| FamilyName | IR/L-BSPT |
| Threads per Inch | 28.0 |
| COO | Israel |
| Size | 0.1570 |
| External/Internal | Internal |
| Weight (OZ) | 0.05644 |
| Width (Inch) | 0.71 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
