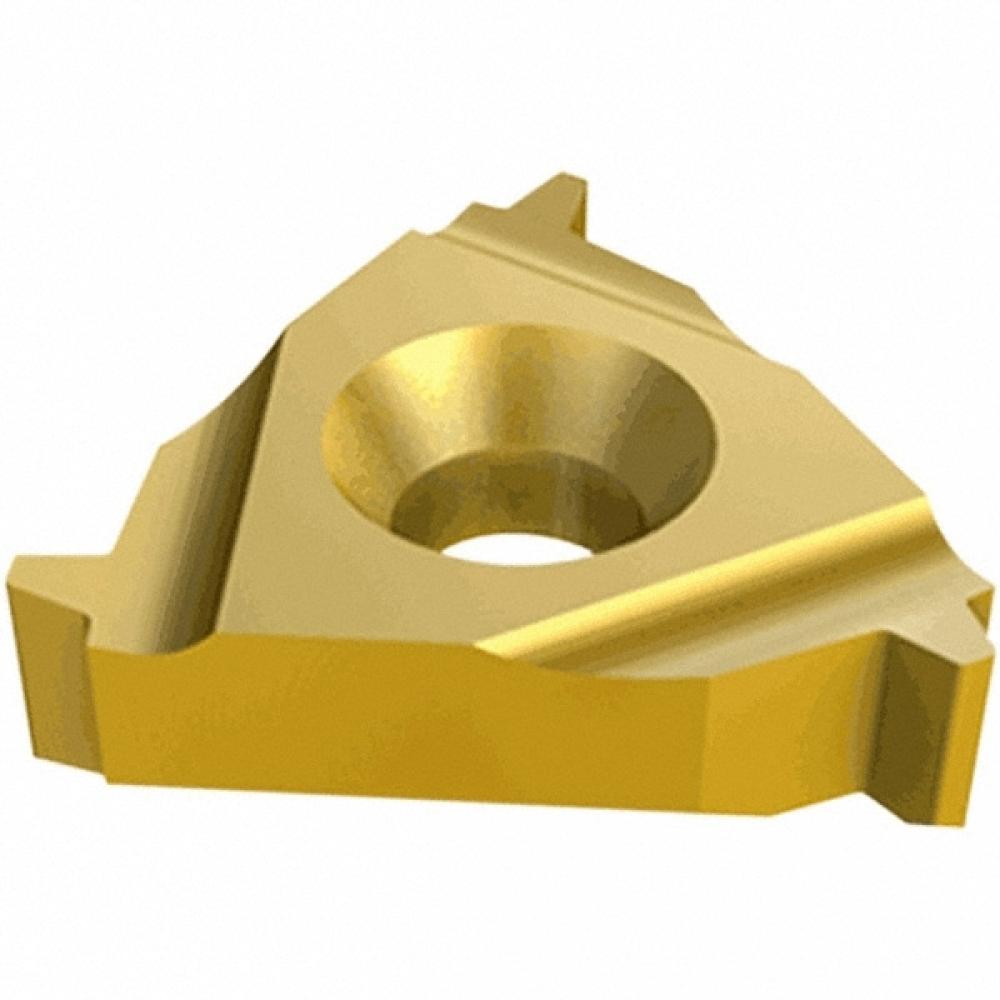

Iscar
5901415
06IL 0.75 ISO IC228
Specifications
| Coating/Finish | TiCN+TiN |
|---|---|
| Insert Hand | Left |
| Grade | IC228 |
| Long Description | Internal, ISO metric (DIN13 12-1986 class 6H) laydown threading inserts. IR/L - ground periphery and rake, IRB - with a chipformer and peripherally ground, IRM - with a chipformer. Application: general industry. |
| Short Description | 06IL-0.75-ISO-IC228 ISCAR THREADING INSERTS - GROUND |
| Insert Designation | 06IL |
| Material | Carbide |
| APP1Name | Internal Thread Milling |
| FamilyName | IR/L-ISO |
| Thread Pitch | 0.750 mm |
| COO | Israel |
| Size | 0.1570 |
| External/Internal | Internal |
| Weight (OZ) | 0.05644 |
| Width (Inch) | 0.79 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
