Iscar
5901521

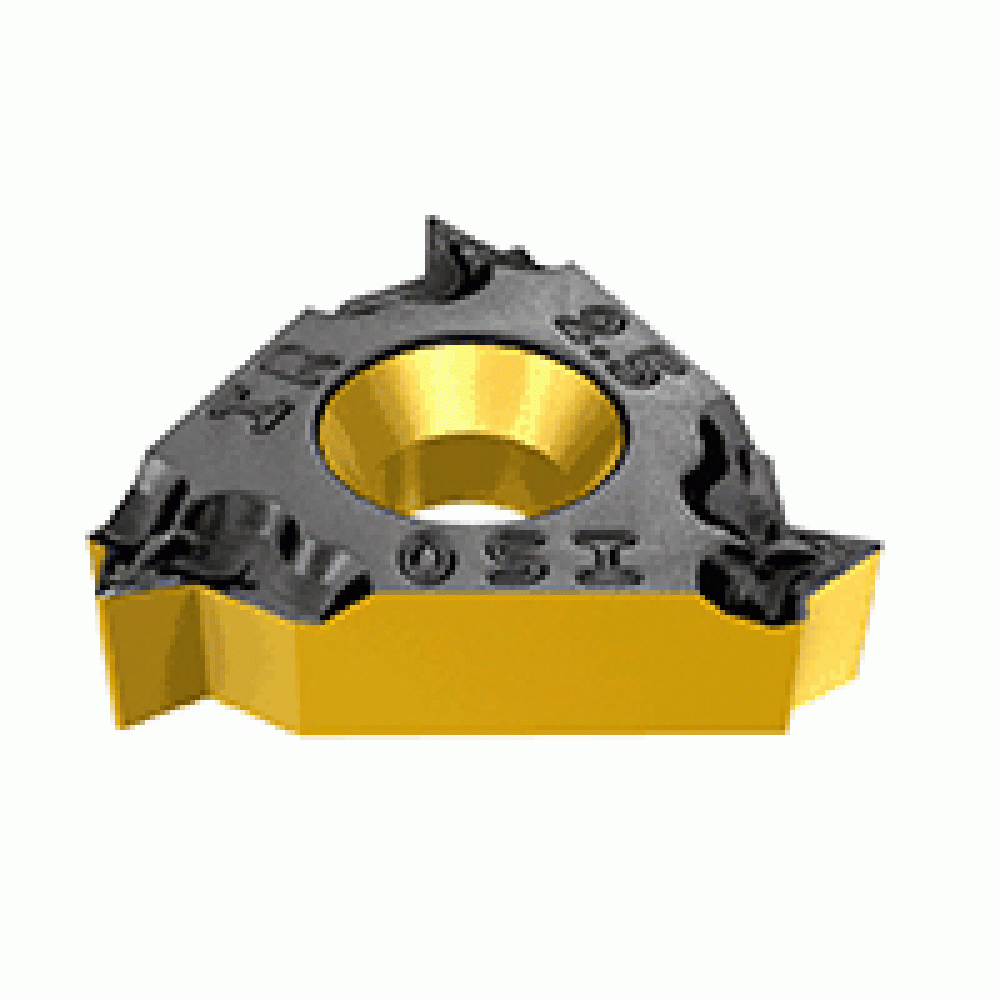

16IRM 3.00 ISO IC908
Specifications
| Coating/Finish | TiAlN |
|---|---|
| Insert Hand | Right |
| Grade | IC908 |
| Long Description | Internal, ISO metric (DIN13 12-1986 class 6H) laydown threading inserts. IR/L - ground periphery and rake, IRB - with a chipformer and peripherally ground, IRM - with a chipformer. Application: general industry. |
| Short Description | ISCAR 16IRM-3.0-ISO IC908 CARB THR INSERT W/CHIPBREAKER |
| Insert Designation | 16IRM |
| Material | Carbide |
| APP1Name | Internal Thread Milling |
| FamilyName | IR/L-ISO |
| Thread Pitch | 3.000 mm |
| COO | Israel |
| Size | 0.3750 |
| External/Internal | Internal |
| Weight (OZ) | 0.24691 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
