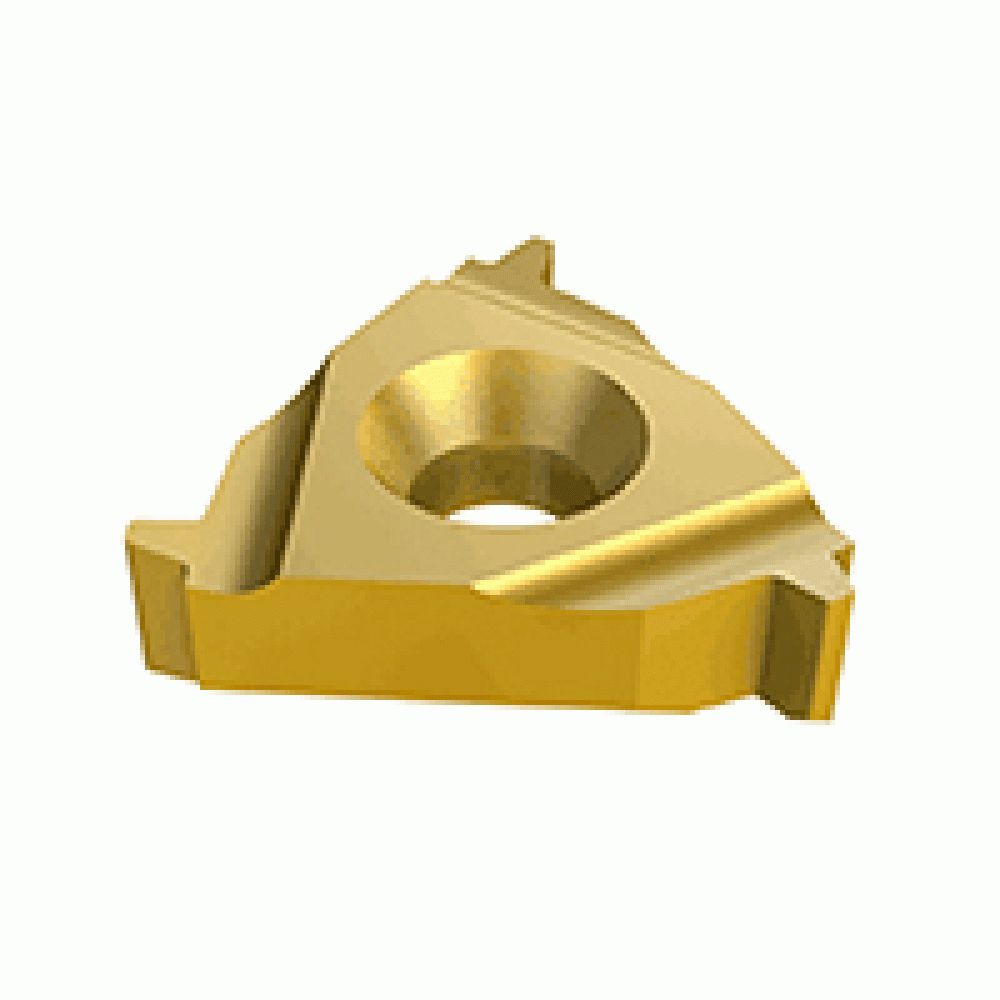

Iscar
5901595
27IR 4 ACME IC250
Specifications
| Coating/Finish | TiCN+TiN |
|---|---|
| Insert Hand | Right |
| Grade | IC250 |
| Long Description | Internal ACME (ASME/ANSI B1.5-1988 Class 3G) profile, laydown threading inserts, for feed screws. |
| Short Description | 27IR-4-ACME-IC250 ISCAR THREADING INSERTS - GROUND |
| Insert Designation | 27IR |
| Material | Carbide |
| APP1Name | Internal Threading lay down |
| FamilyName | IR/L-ACME |
| Threads per Inch | 4.0 |
| COO | Israel |
| Size | 0.6250 |
| External/Internal | Internal |
| Weight (OZ) | 0.85185 |
| Width (Inch) | 2.24 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
