Iscar
5902029

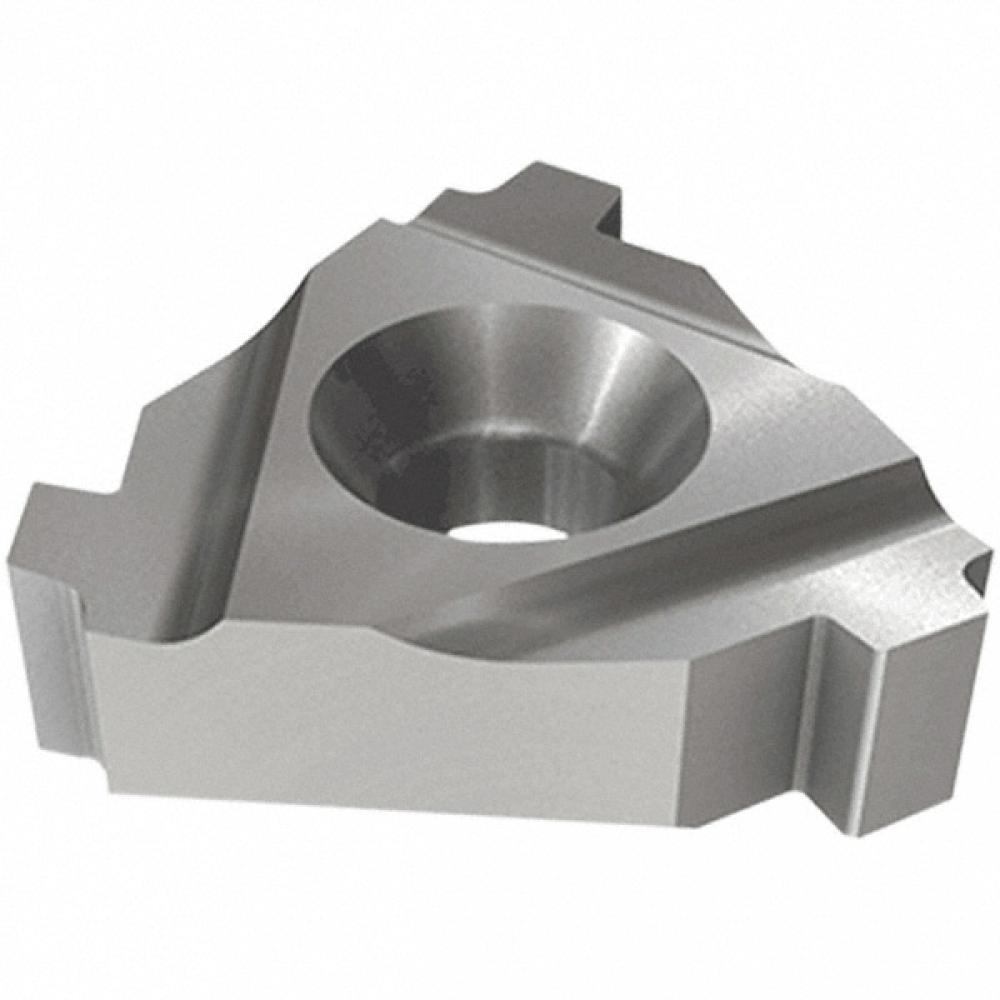

16IR 10 API RD IC908
Specifications
| Coating/Finish | TiAlN |
|---|---|
| Insert Hand | Right |
| Grade | IC908 |
| Long Description | Internal API - oil thread, round profile (API Spec 5B8-1996) laydown threading inserts. |
| Short Description | ISCAR 16IR 10 API RD IC908 INSERT |
| Insert Designation | 16IR |
| Material | Carbide |
| APP1Name | Internal Threading lay down |
| FamilyName | IR/L-API RD |
| Threads per Inch | 10.0 |
| COO | Israel |
| Size | 0.3750 |
| External/Internal | Internal |
| Weight (OZ) | 0.24691 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
