Iscar
5902117

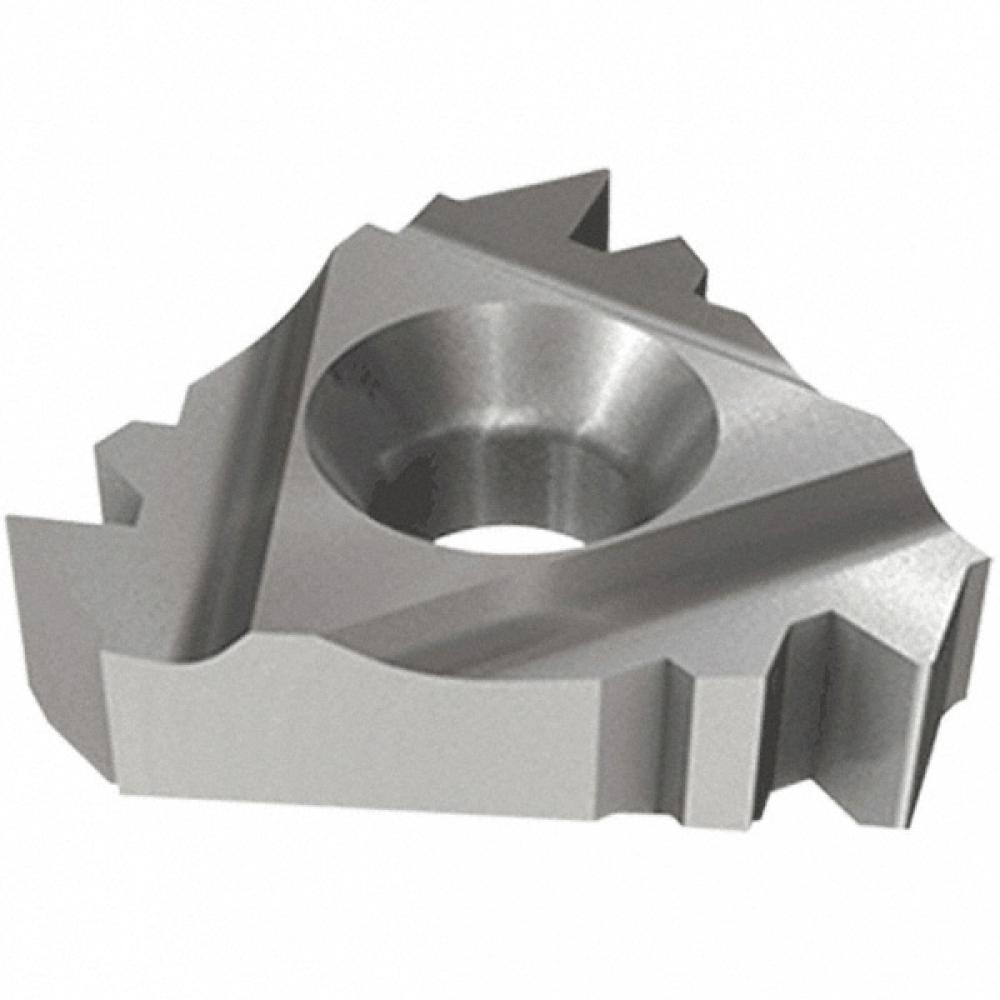

16ER 16 ABUT IC908
Specifications
| Coating/Finish | TiAlN |
|---|---|
| Insert Hand | Right |
| Grade | IC908 |
| Long Description | External American Buttress (ANSI B1.9-1973 Class 2) laydown threading inserts, for high force transmission in one direction. |
| Short Description | 16ER-16-ABUT-IC908 ISCAR THREADING INSERTS - GROUND |
| Insert Designation | 16ER |
| Material | Carbide |
| APP1Name | External Threading |
| FamilyName | ER/L-ABUT |
| Threads per Inch | 16.0 |
| COO | Israel |
| Size | 0.3750 |
| External/Internal | External |
| Weight (OZ) | 0.19753 |
| Width (Inch) | 0.79 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
