Iscar
5902232

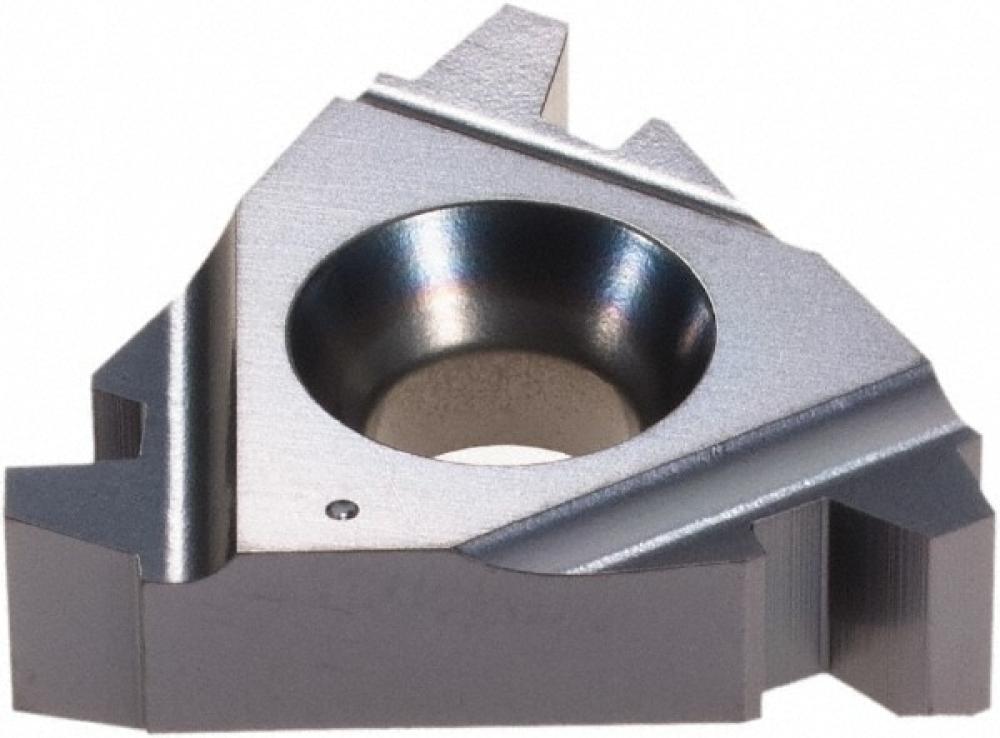

22ER 6 ACME IC908
Specifications
| Coating/Finish | TiAlN |
|---|---|
| Insert Hand | Right |
| Grade | IC908 |
| Long Description | External ACME (ASME/ANSI B1.5-1988 Class 3G) profile, laydown threading inserts, for feed screws. |
| Short Description | ISCAR 22ER-6ACME IC908 6P ACME THR INSERT |
| Insert Designation | 22ER |
| Material | Carbide |
| APP1Name | External Thread Milling |
| FamilyName | ER/L-ACME |
| Threads per Inch | 6.0 |
| COO | Israel |
| Size | 0.5000 |
| External/Internal | External |
| Weight (OZ) | 0.55732 |
| Width (Inch) | 2.24 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
