Iscar
5902364

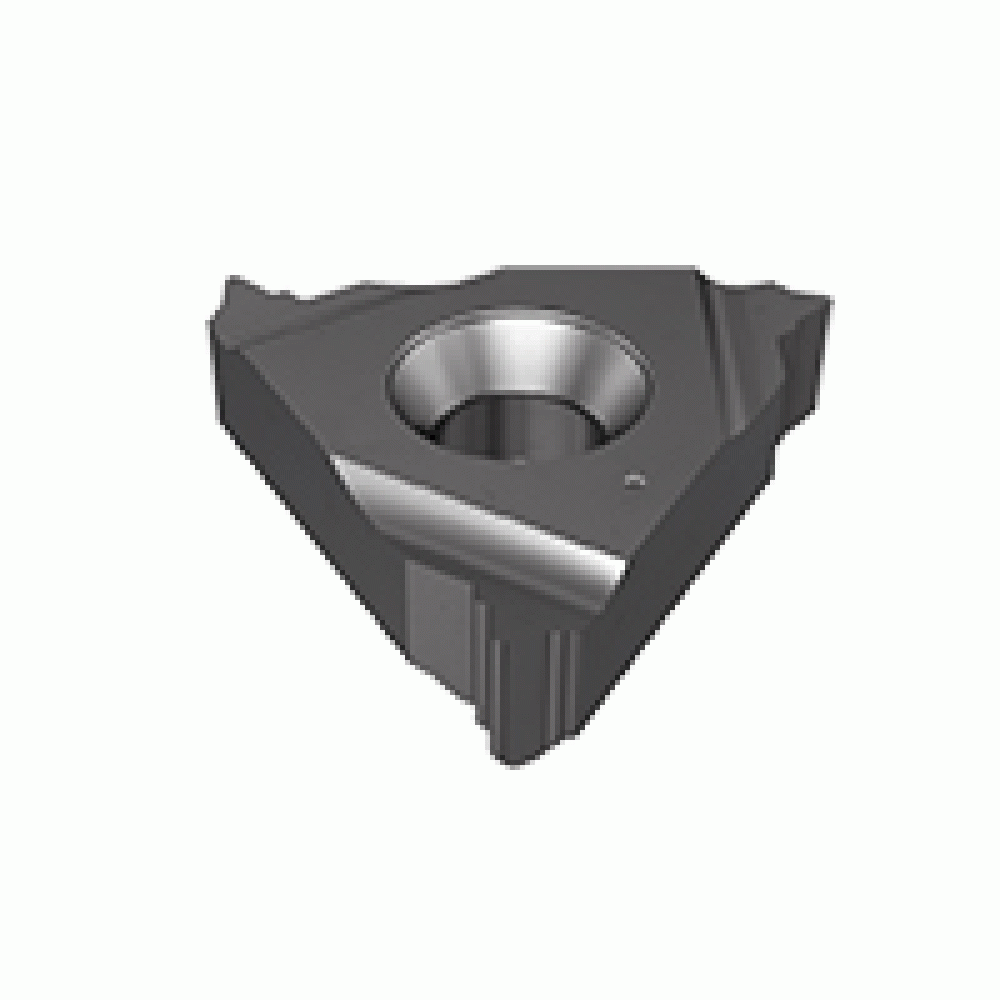

16ER 10 UNJ IC908
Specifications
| Coating/Finish | TiAlN |
|---|---|
| Insert Hand | Right |
| Grade | IC908 |
| Long Description | External UNJ ( MIL-S-8879C 9-1992 Class 3A ) profile, laydown threading inserts. Application: aviation and aerospace industry. |
| Short Description | 16ER-10-UNJ-IC908 ISCAR THREADING INSERTS - GROUND |
| Insert Designation | 16ER |
| Material | Carbide |
| APP1Name | External Thread Milling |
| FamilyName | ER/L-UNJ |
| Threads per Inch | 10.0 |
| COO | Israel |
| Size | 0.3750 |
| External/Internal | External |
| Weight (OZ) | 0.19048 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
