Iscar
5902415

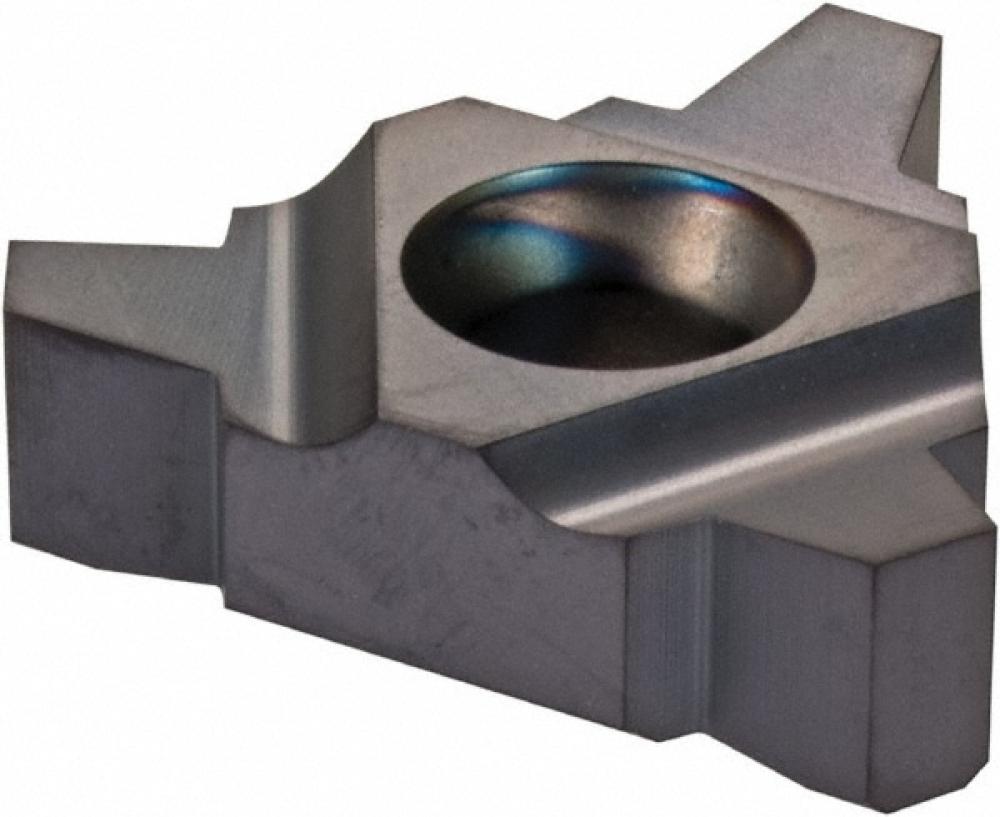

27UERL 3 ACME IC908
Specifications
| Coating/Finish | TiAlN |
|---|---|
| Insert Hand | Right |
| Grade | IC908 |
| Long Description | External ACME (ASME/ANSI B1.5-1988 Class 3G) profile, laydown threading inserts, for feed screws. |
| Short Description | 27UERL-3-ACME-IC908 ISCAR THREADING INSERTS - GROUND |
| Insert Designation | 27UER |
| Material | Carbide |
| APP1Name | External Thread Milling |
| FamilyName | ER/L-ACME |
| Threads per Inch | 3.0 |
| COO | Israel |
| Size | 0.6250 |
| External/Internal | External |
| Weight (OZ) | 0.97354 |
| Width (Inch) | 2.2 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
