Iscar
5920003

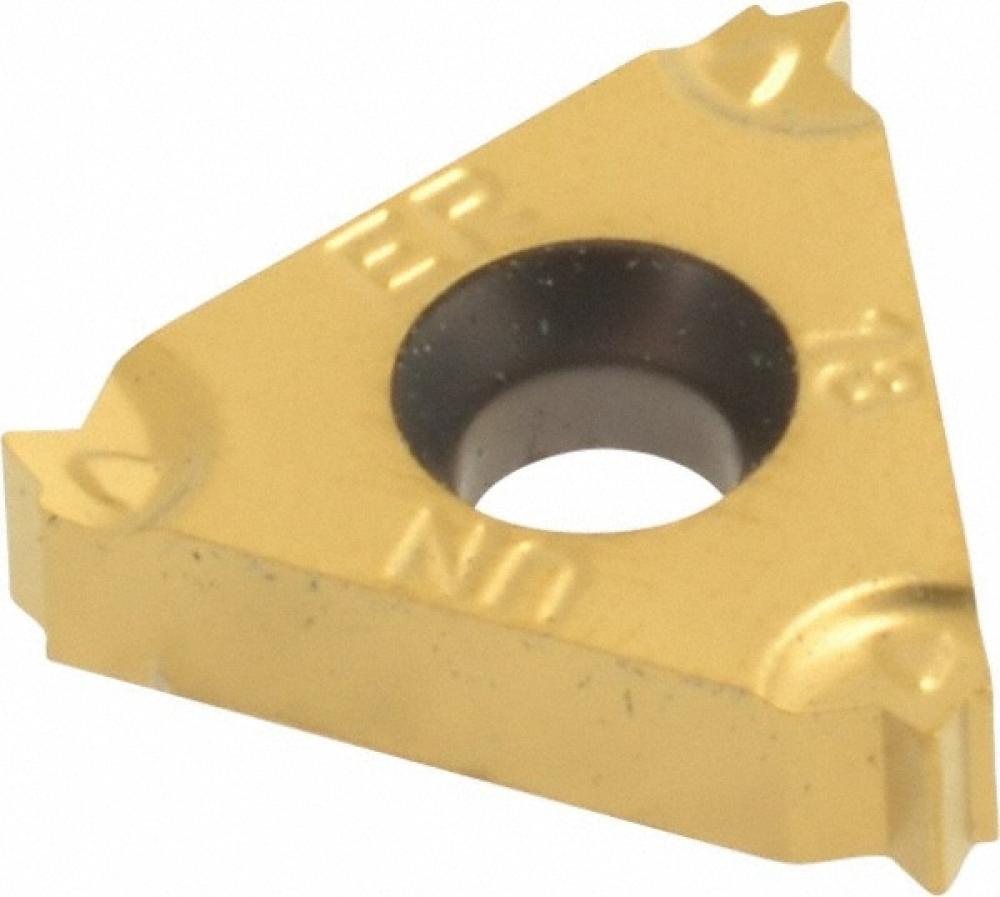

16ERM 18 UN IC250
Specifications
| Coating/Finish | TiCN+TiN |
|---|---|
| Insert Hand | Right |
| Grade | IC250 |
| Long Description | External American UN full profile (UN, UNC, UNF, UNEF) laydown threading inserts. ER/L - ground periphery and rake, ERB - with a chipformer and peripherally ground, ERM - with a chipformer for general applications |
| Short Description | ISCAR 16ERM 18UN IC-250 |
| Insert Designation | 16ERM |
| Material | Carbide |
| APP1Name | External Thread Milling |
| FamilyName | ER/L-UN |
| Threads per Inch | 18.0 |
| COO | Israel |
| Size | 0.3750 |
| External/Internal | External |
| Weight (OZ) | 0.13404 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
