Iscar
5921196

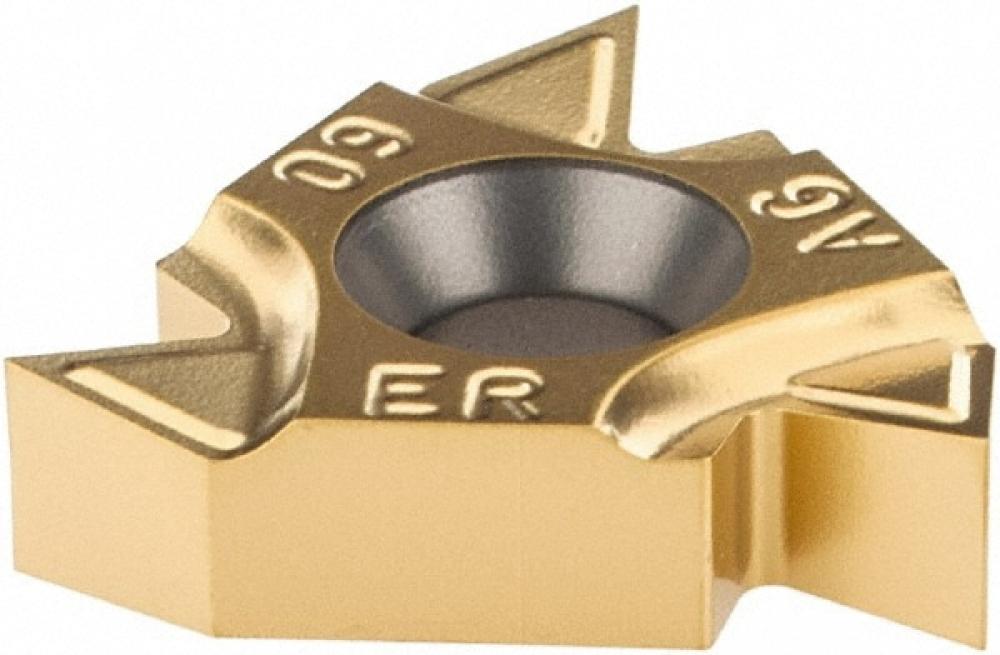

16ERM AG 60 IC508
Specifications
| Coating/Finish | TiCN+TiN |
|---|---|
| Insert Hand | Right |
| Grade | IC508 |
| Long Description | External 60° partial profile, laydown threading inserts. IR/L - Ground periphery and rake, ERB - with a chipformer and peripherally ground, ERM - With a chipformer. Application: general applications |
| Short Description | 16ERM-AG-60-IC508 ISCAR THREADING INSERTS - "M" TYPE |
| Insert Designation | 16ERM |
| Material | Carbide |
| APP1Name | External Thread Milling |
| FamilyName | ER/L-60° |
| COO | Israel |
| Size | 0.3750 |
| External/Internal | External |
| Weight (OZ) | 0.18342 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
