Iscar
5921209

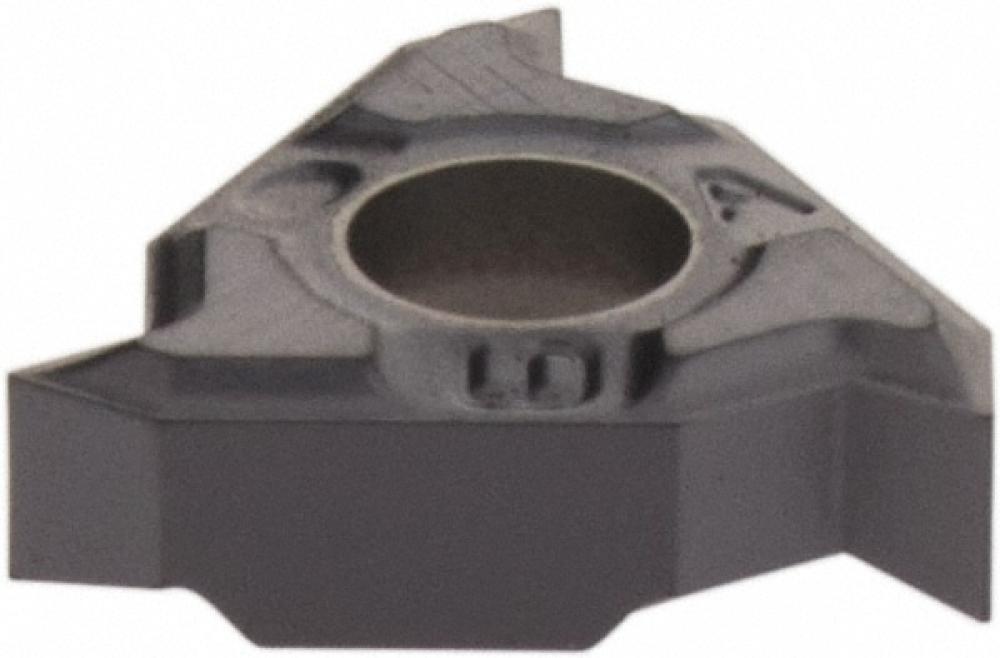

08IRM A 60 IC908
Specifications
| Coating/Finish | TiAlN |
|---|---|
| Insert Hand | Right |
| Grade | IC908 |
| Long Description | Internal 60° partial profile, laydown threading inserts. IR/L - Ground periphery and rake, IRB - with a chipformer and peripherally ground, IRM - With a chipformer. Application: general applications |
| Short Description | ISCAR 08IRM-A-60-IC908 CARB INSERT 16-48TPI R.002 |
| Insert Designation | 08IRM |
| Material | Carbide |
| APP1Name | Internal Thread Milling |
| FamilyName | IR/L-60° |
| COO | Israel |
| Size | 0.1970 |
| External/Internal | Internal |
| Weight (OZ) | 0.06349 |
| Width (Inch) | 0.71 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
