Iscar
5921237

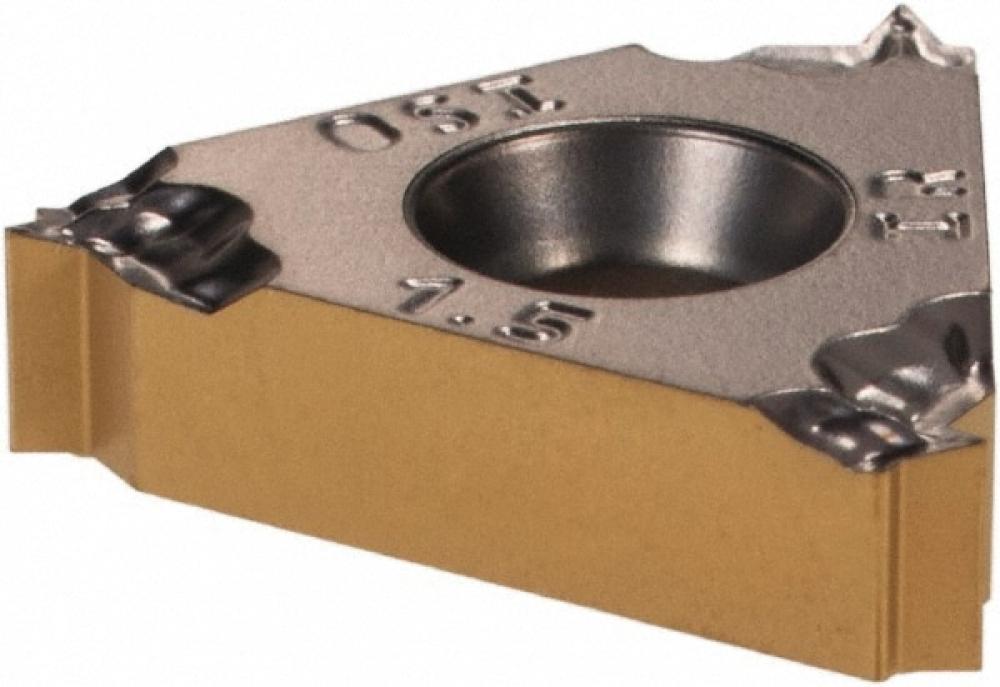

16IRM 1.50 ISO IC808
Specifications
| Coating/Finish | TiAlN+AlTiN+TiN |
|---|---|
| Insert Hand | Right |
| Grade | IC808 |
| Long Description | Internal, ISO metric (DIN13 12-1986 class 6H) laydown threading inserts. IR/L - ground periphery and rake, IRB - with a chipformer and peripherally ground, IRM - with a chipformer. Application: general industry. |
| Short Description | 16IRM-1.50-ISO-IC808 ISCAR THREADING INSERTS - "M" TYPE |
| Insert Designation | 16IRM |
| Material | Carbide |
| APP1Name | Internal Thread Milling |
| FamilyName | IR/L-ISO |
| Thread Pitch | 1.500 mm |
| COO | Israel |
| Size | 0.3750 |
| External/Internal | Internal |
| Weight (OZ) | 0.21164 |
| Width (Inch) | 0.71 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
