Iscar

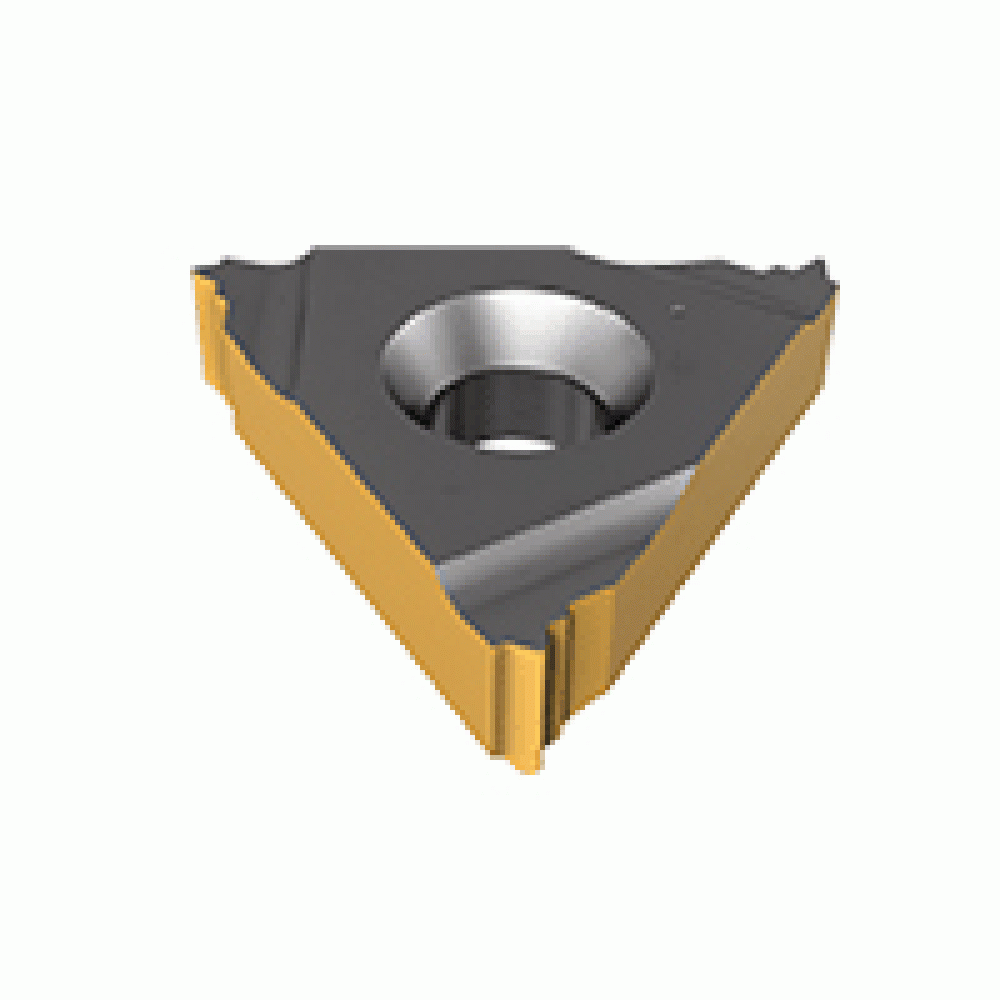

5991534
16ER 2.00 ISO IC08
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Insert Hand | Right |
| Grade | IC08 |
| Long Description | External ISO Metric (DIN13 12-1986 class: 6g), laydown threading inserts. ER/L - ground periphery and rake, ERB - with a chipformer and peripherally ground, ERM - with a chipformer. Application: general industry. |
| Short Description | ISCAR 16ER 2.00 ISO IC08 |
| Insert Designation | 16ER |
| Material | Carbide |
| APP1Name | External Thread Milling |
| FamilyName | ER/L-ISO |
| Thread Pitch | 2.000 mm |
| COO | Israel |
| Size | 0.3750 |
| External/Internal | External |
| Weight (OZ) | 0.20459 |
| Width (Inch) | 0.71 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
