Iscar
5994635
16ER 1.00 ISO IC228
Specifications
| Coating/Finish | TiCN+TiN |
|---|---|

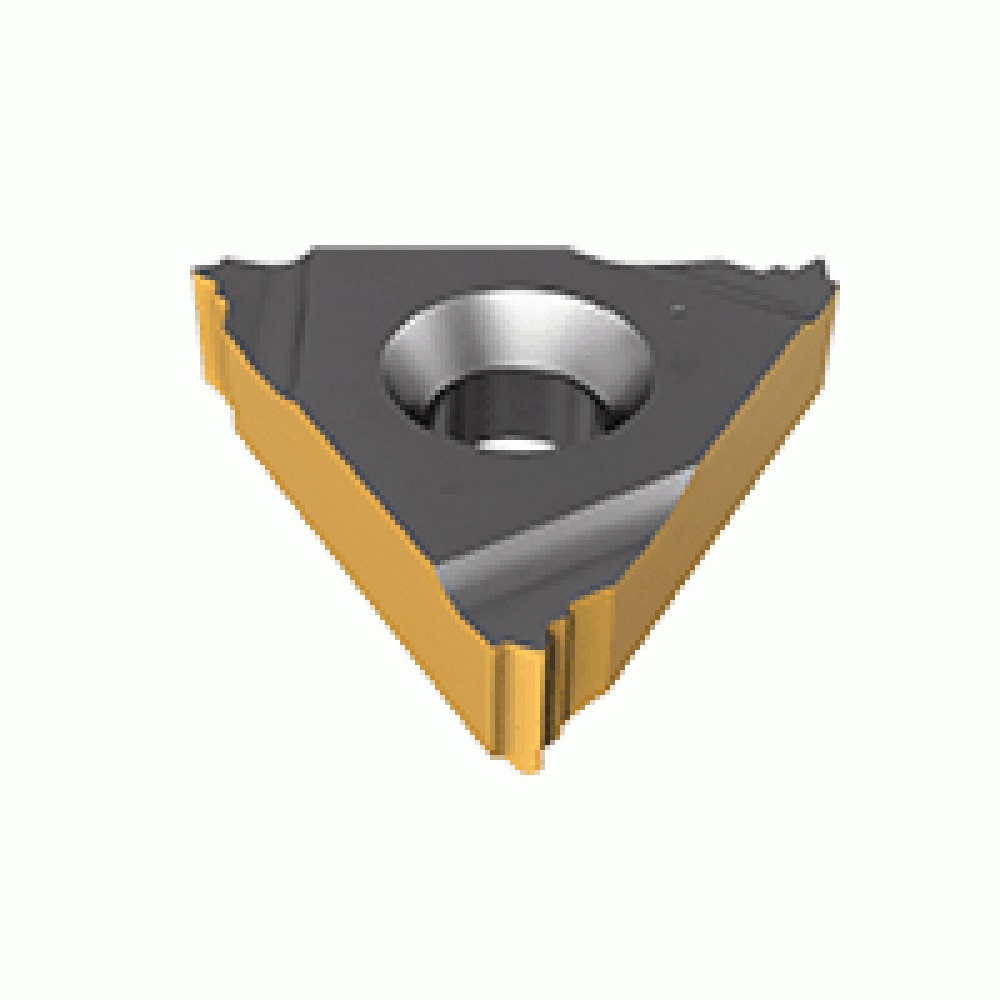

| Long Description | External ISO Metric (DIN13 12-1986 class: 6g), laydown threading inserts. ER/L - ground periphery and rake, ERB - with a chipformer and peripherally ground, ERM - with a chipformer. Application: general industry. |
| Short Description | ISCAR 16ER-1.00-ISO-IC228 |
| APP1Name | External Thread Milling |
| FamilyName | ER/L-ISO |
| COO | Israel |
| Weight (OZ) | 0.21164 |
| Width (Inch) | 0.71 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
