Iscar
5994920

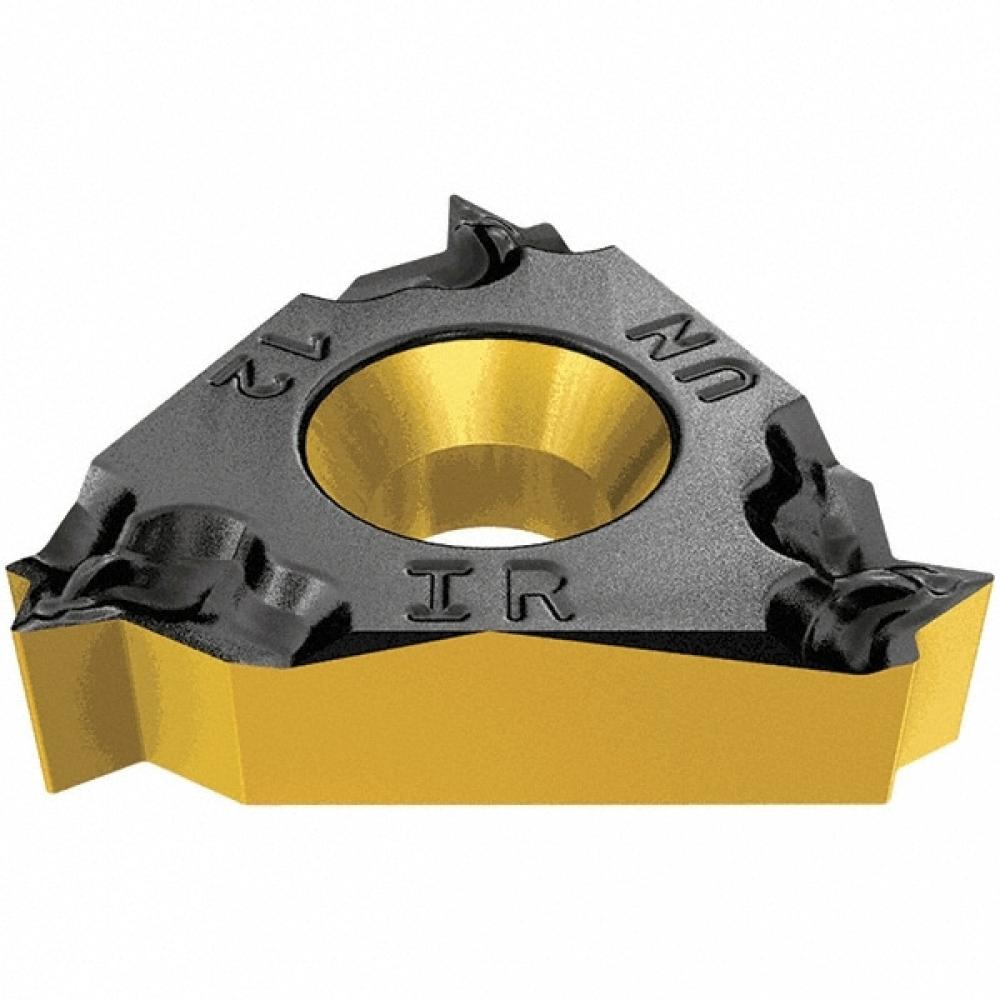

22IR 5 UN IC908
Specifications
| Coating/Finish | TiAlN |
|---|---|
| Insert Hand | Right |
| Grade | IC908 |
| Long Description | Internal American UN, full profile (UN, UNC, UNF, UNEF), laydown threading inserts. IR/L - Ground periphery and rake, IRB - with a chipformer and peripherally ground, IRM - With a chipformer. Application: general industry. |
| Short Description | ISCAR 22IR-5UN IC908 CARB THR INSERT R.013 |
| Insert Designation | 22IR |
| Material | Carbide |
| APP1Name | Internal Thread Milling |
| FamilyName | IR/L-UN |
| Threads per Inch | 5.0 |
| COO | Israel |
| Size | 0.5000 |
| External/Internal | Internal |
| Weight (OZ) | 0.41623 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
