Iscar
5995621

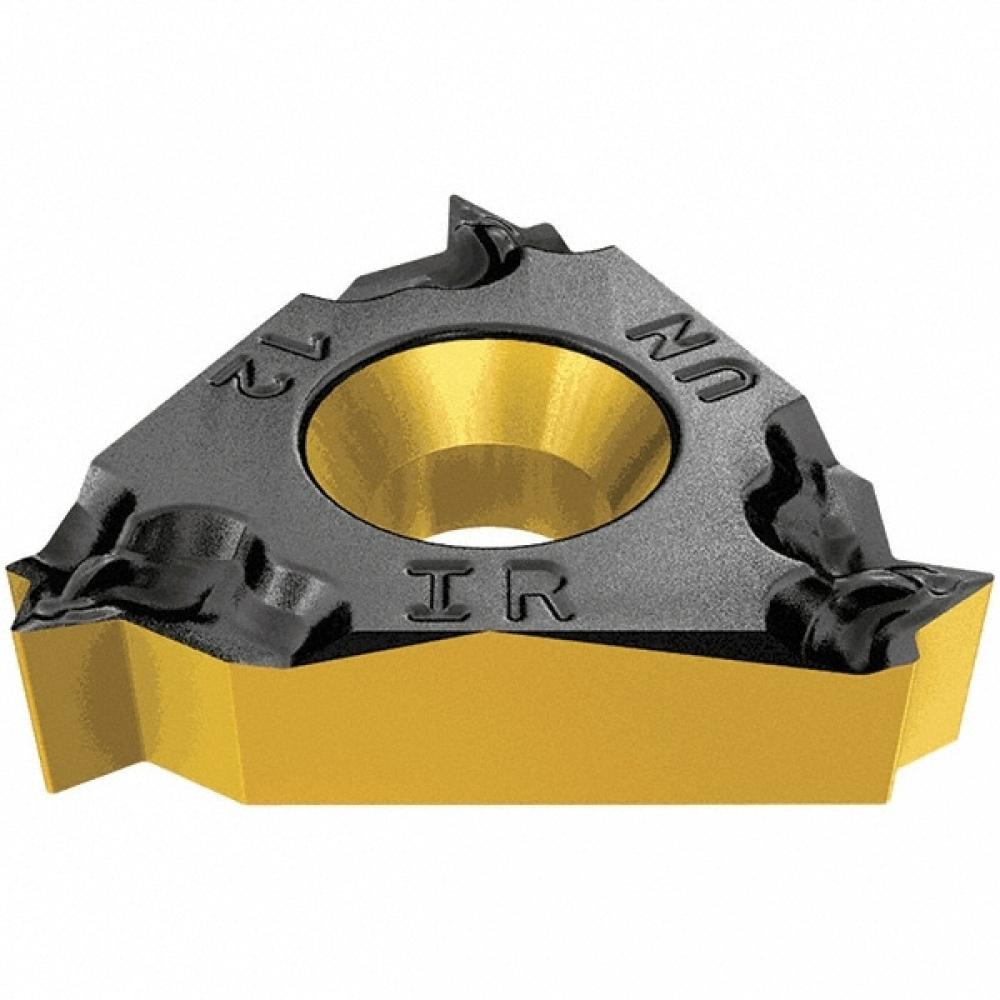

11IL 14 UN IC908
Specifications
| Coating/Finish | TiAlN |
|---|---|
| Insert Hand | Left |
| Grade | IC908 |
| Long Description | Internal American UN, full profile (UN, UNC, UNF, UNEF), laydown threading inserts. IR/L - Ground periphery and rake, IRB - with a chipformer and peripherally ground, IRM - With a chipformer. Application: general industry. |
| Short Description | 11IL-14-UN-IC908 ISCAR THREADING INSERTS - GROUND |
| Insert Designation | 11IL |
| Material | Carbide |
| APP1Name | Internal Thread Milling |
| FamilyName | IR/L-UN |
| Threads per Inch | 14.0 |
| COO | Israel |
| Size | 0.2500 |
| External/Internal | Internal |
| Weight (OZ) | 0.09171 |
| Width (Inch) | 0.79 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
