Iscar
5995682

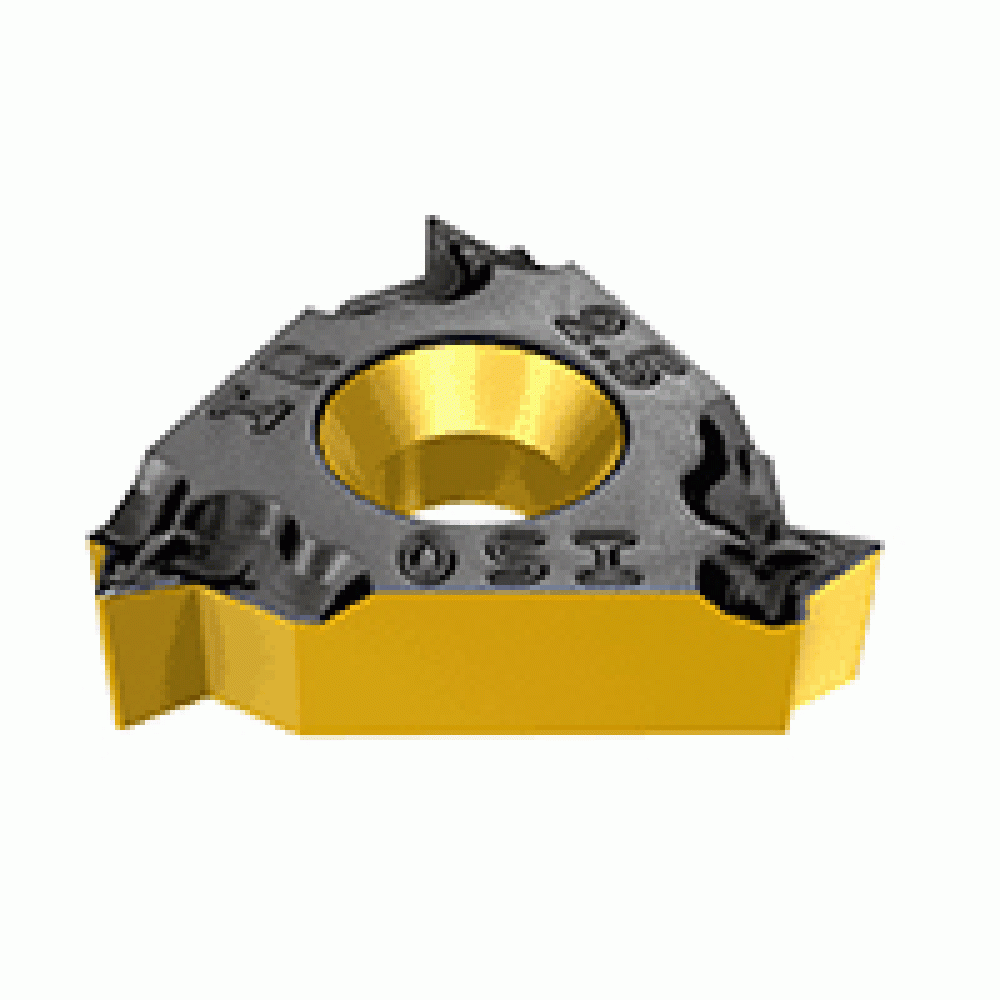

22IR 5.00 ISO IC250
Specifications
| Coating/Finish | TiCN+TiN |
|---|---|
| Long Description | Internal, ISO metric (DIN13 12-1986 class 6H) laydown threading inserts. IR/L - ground periphery and rake, IRB - with a chipformer and peripherally ground, IRM - with a chipformer. Application: general industry. |
| Short Description | ISCAR 22IR-5.00-ISO-IC250 |
| APP1Name | Internal Thread Milling |
| FamilyName | IR/L-ISO |
| COO | Israel |
| Weight (OZ) | 0.3739 |
| Width (Inch) | 1.69 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
