Iscar
5996066

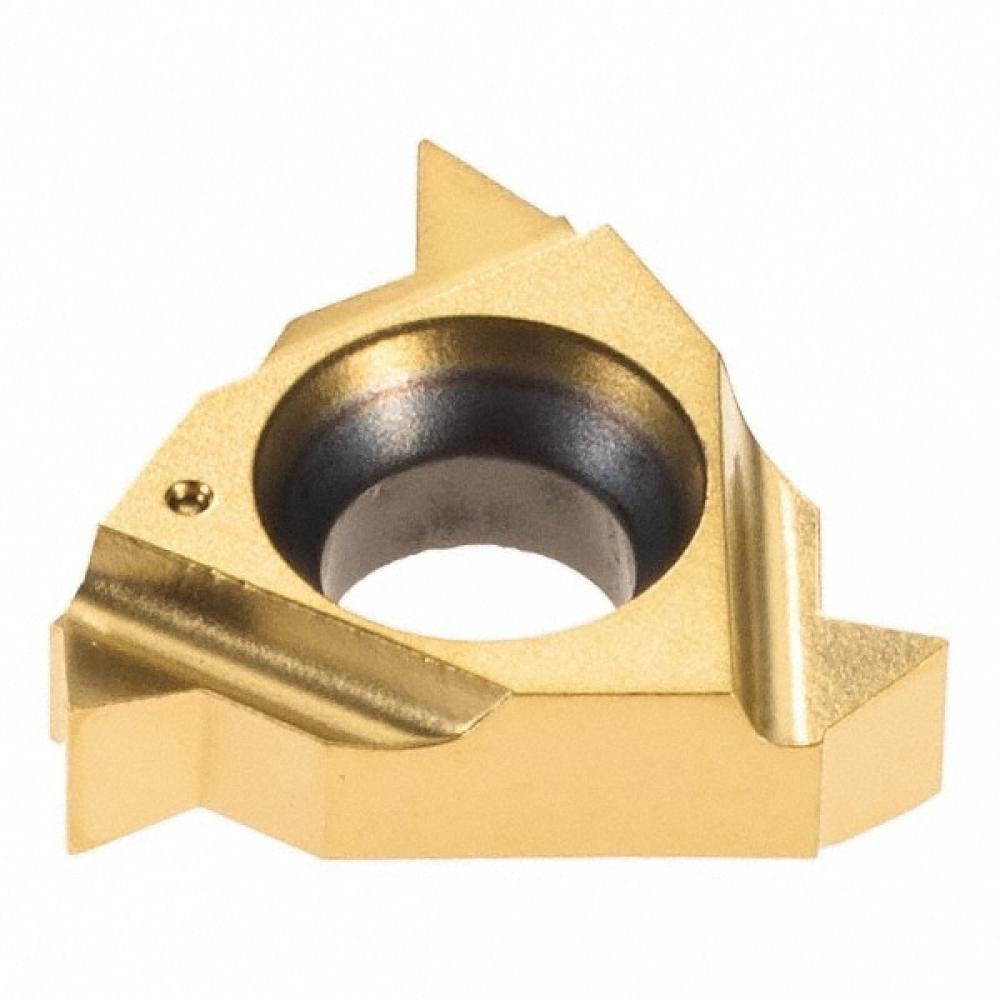

08IR 18 NPT IC228
Specifications
| Coating/Finish | TiCN+TiN |
|---|---|
| Insert Hand | Right |
| Grade | IC228 |
| Long Description | Internal NPT (National Pipe Threads) full profile laydown threading inserts. IR/L - ground periphery and rake, IRB - with a chipformer and peripherally ground, IRM - with a chipformer, for steam, gas and water pipes. |
| Short Description | ISCAR 08IR-18NPT IC228 CARB THR INSERT |
| Insert Designation | 08IR |
| Material | Carbide |
| APP1Name | Internal Thread Milling |
| FamilyName | IR/L-NPT |
| Threads per Inch | 18.0 |
| COO | Israel |
| Size | 0.1970 |
| External/Internal | Internal |
| Weight (OZ) | 0.06349 |
| Width (Inch) | 0.71 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
