Iscar
5996993

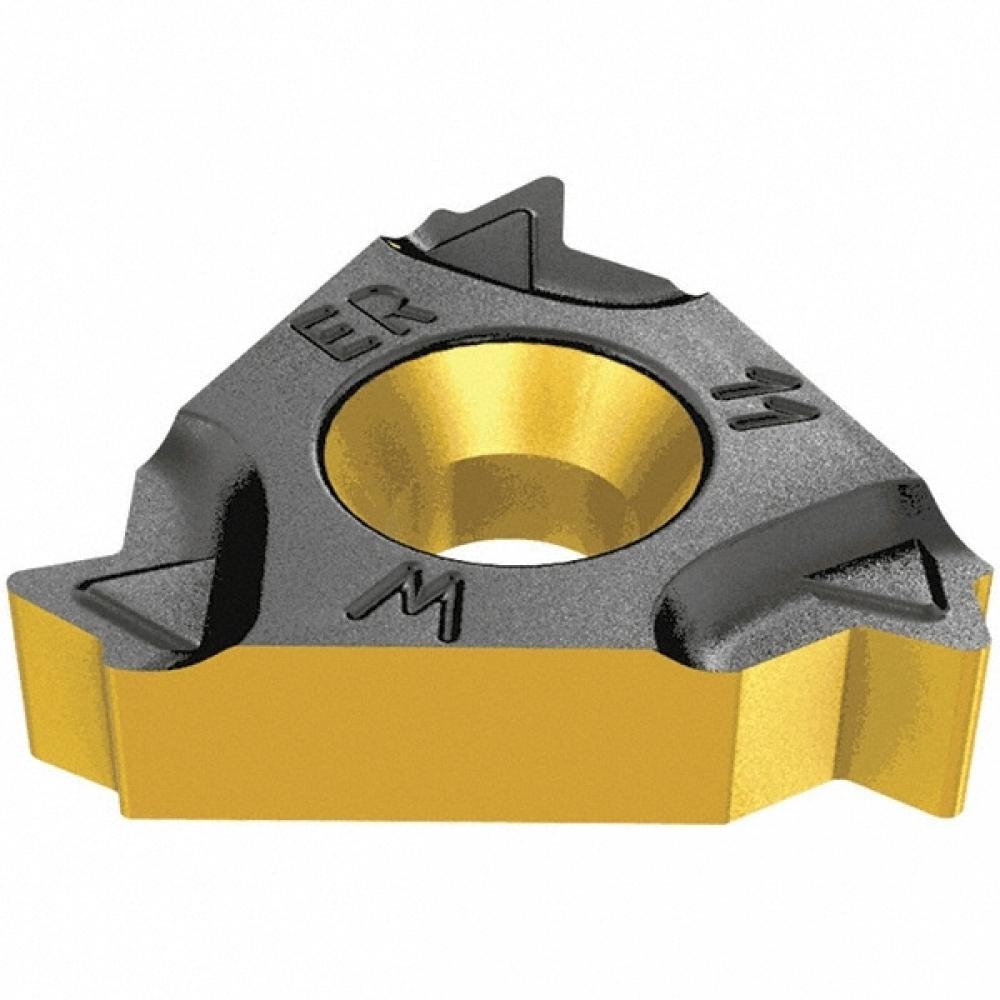

16ER 9 W IC250
Specifications
| Coating/Finish | TiCN+TiN |
|---|---|
| Insert Hand | Right |
| Grade | IC250 |
| Long Description | External Whitworth (BSW, BSF, BSP), full profile laydown threading inserts. ER/L - Ground periphery and rake, ERB - With a chipformer and peripherally ground, ERM - With a chipformer. Application: fittings and pipe couplings. |
| Short Description | 16ER-9-W-IC250 ISCAR THREADING INSERTS - GROUND |
| Insert Designation | 16ER |
| Material | Carbide |
| APP1Name | External Thread Milling |
| FamilyName | ER/L-W |
| Threads per Inch | 9.0 |
| COO | Israel |
| Size | 0.3750 |
| External/Internal | External |
| Weight (OZ) | 0.16931 |
| Width (Inch) | 0.71 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
