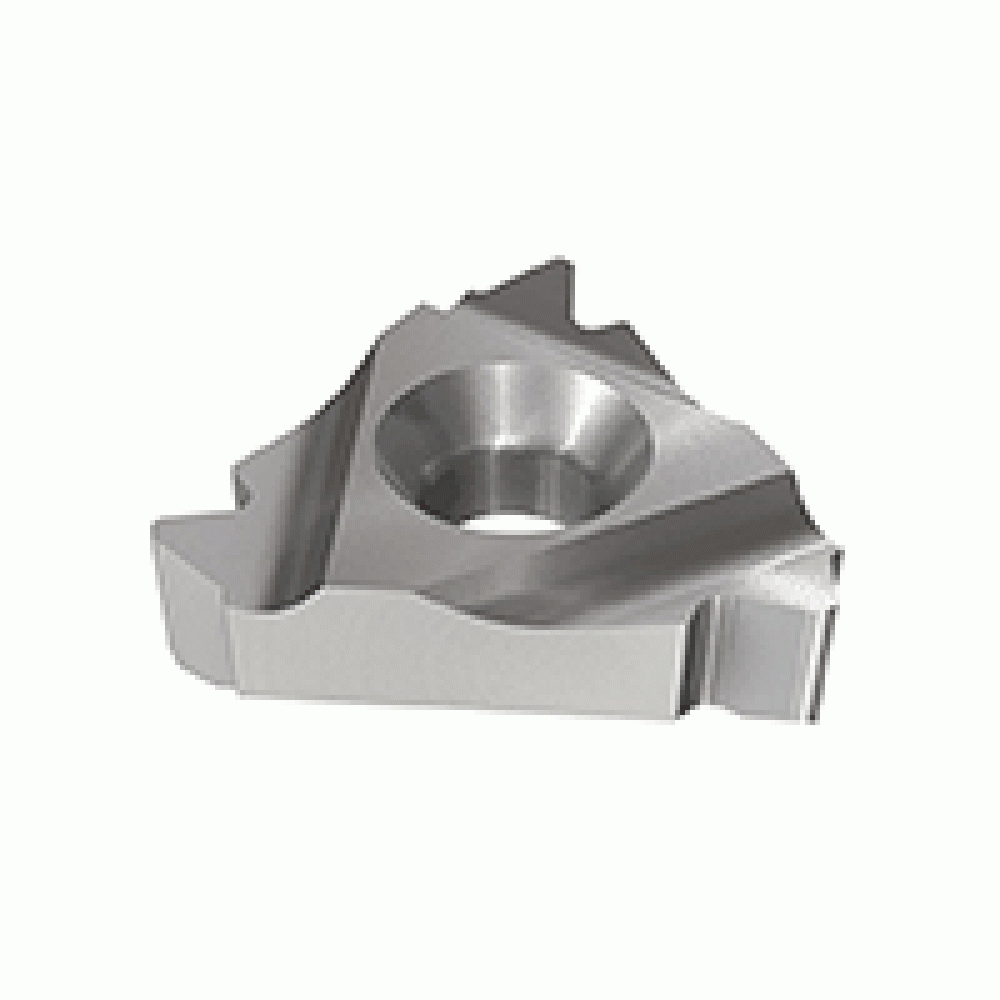

Iscar
5997573
22IR 5 API 403 IC250
Specifications
| Coating/Finish | TiCN+TiN |
|---|---|
| Insert Hand | Right |
| Grade | IC250 |
| Long Description | External API - oil thread, round profile (API Spec 7-2) laydown threading inserts. |
| Short Description | 22IR-5-API-403-IC250 ISCAR THREADING INSERTS - GROUND |
| Insert Designation | 22IR |
| Material | Carbide |
| APP1Name | Internal Threading lay down |
| FamilyName | IR/L-API |
| Threads per Inch | 5.0 |
| COO | Israel |
| Size | 0.5000 |
| External/Internal | Internal |
| Weight (OZ) | 0.35273 |
| Width (Inch) | 1.69 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
