Iscar
5998303

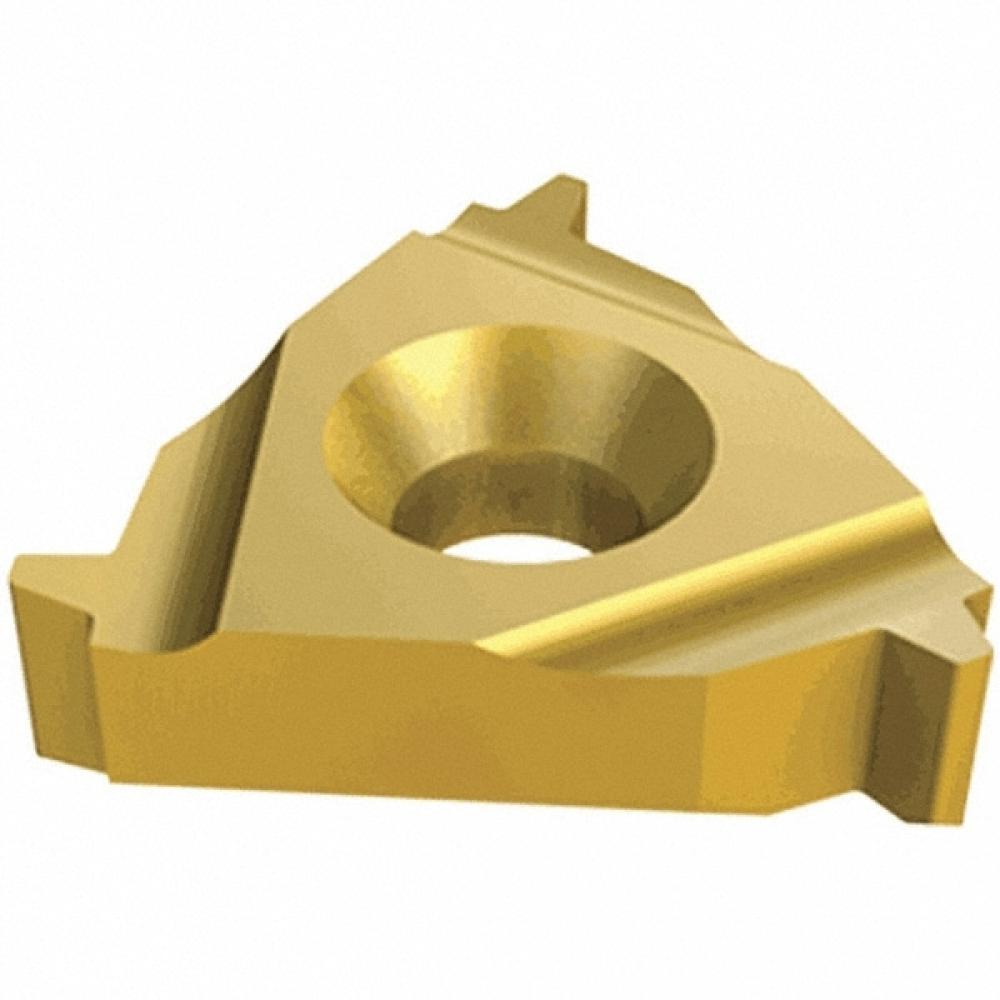

16IR 1.5 TR IC250
Specifications
| Coating/Finish | TiCN+TiN |
|---|---|
| Insert Hand | Right |
| Grade | IC250 |
| Long Description | Internal trapezoid shaped, DIN 103 laydown threading inserts, for feed screws. |
| Short Description | 16IR-1.5-TR-IC250 ISCAR THREADING INSERTS - GROUND |
| Insert Designation | 16IR |
| Material | Carbide |
| APP1Name | Internal Thread Milling |
| FamilyName | IR/L-TR |
| Thread Pitch | 1.500 mm |
| COO | Israel |
| Size | 0.3750 |
| External/Internal | Internal |
| Weight (OZ) | 0.22575 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
