Iscar
6004555

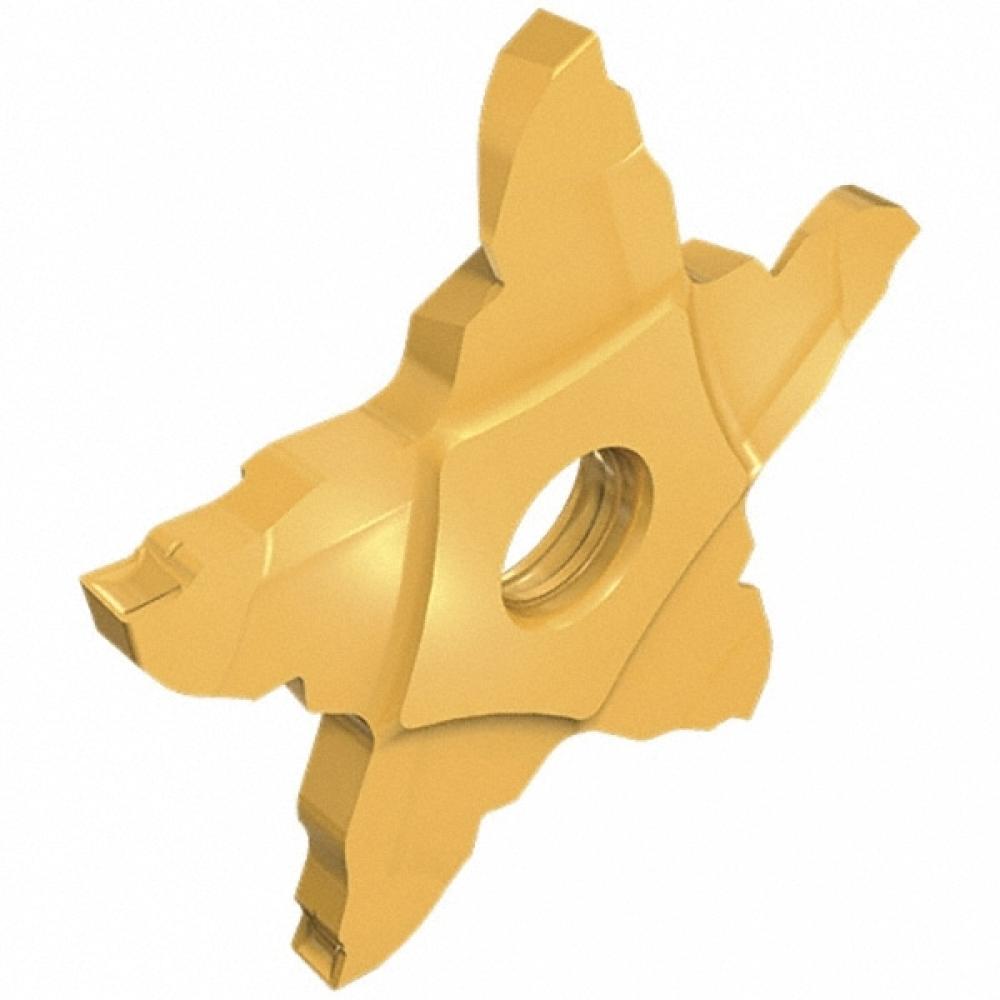

PENTA 34F239-0.15-22RS IC908
Specifications
| Long Description | Pentagonal inserts for face grooving and recessing along shafts, up to .197" depth of cut at a minimum of .866" diameter. The inserts are slightly tilted to enable machining next to the long central shaft. |
|---|---|
| Short Description | PENTA-34F239-0.15-22RS908 ISCAR PENTACUT INSERTS >FACE GROOV |
| Insert Width | 0.0940 |
| APP1Name | Face Grooving |
| FamilyName | PENTA 34F-RS/LS |
| COO | Israel |
| Work Material | Stainless Steel+Hi Temp+Steel+Hardened Metals+Cast Iron |
| Coating | TiAlN |
| Weight (OZ) | 0.80247 |
| Width (Inch) | 2.17 |
| Corner Radius | 0.0060 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Insert Diameter | 1.34 |
