Iscar
6004614

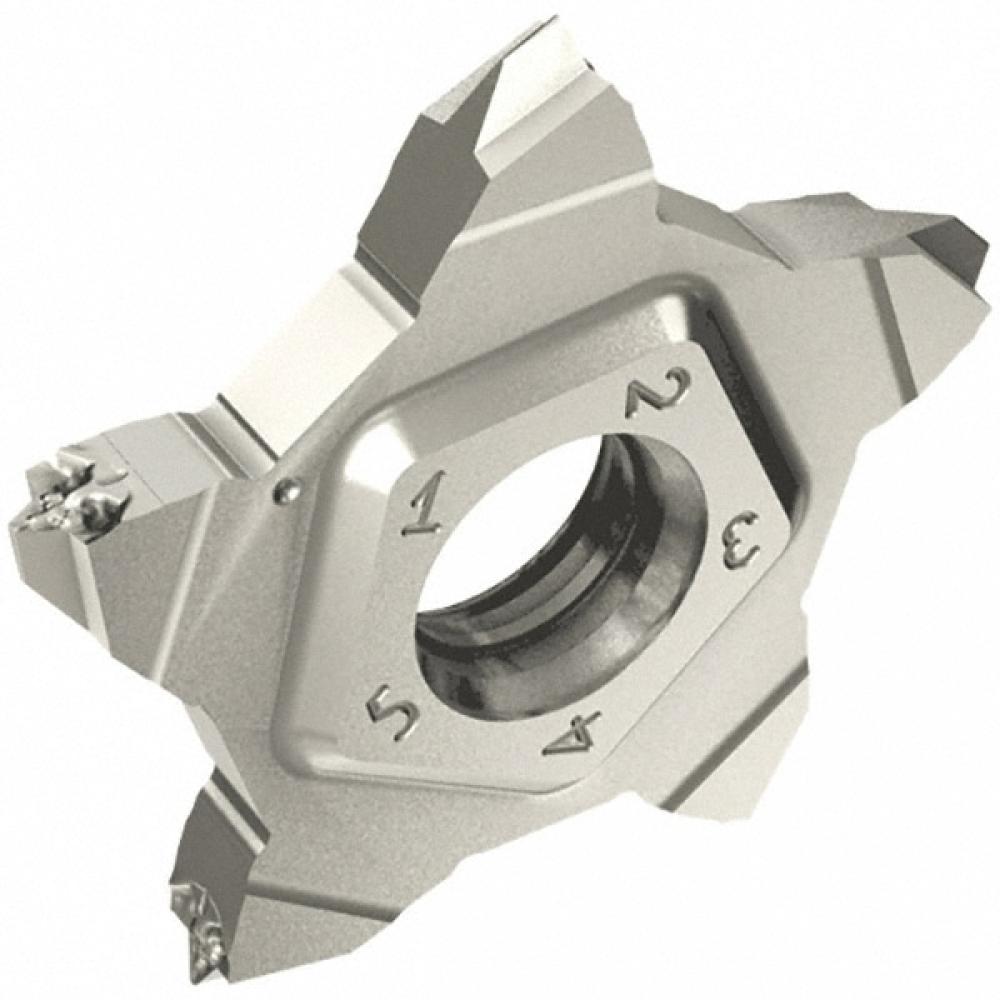

PENTA 24-1.5-ISO IC908
Specifications
| Long Description | Precision ground ISO metric full profile, pentagonal, external threading inserts with a chipformer for general applications. |
|---|---|
| Short Description | PENTA-24-1.5-ISO-IC908 ISCAR |
| Insert Designation | PENTA |
| Material | Carbide |
| APP1Name | Threading (Ext.) Groove Turn T |
| FamilyName | PENTA 24-ISO |
| Thread Pitch | 1.500 mm |
| Coating/Finish | TiAlN |
| COO | Israel |
| Grade | IC908 |
| External/Internal | External |
| Weight (OZ) | 0.41623 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
