Iscar
6170093
DNMG 332-FFC IC520N
Specifications
| Coating/Finish | TiCN+TiN |
|---|---|
| Material | Cermet |
| Included Angle | 55 degrees |
| Style | DNMG |
| Short Description | ISCAR DNMG-332-FFC-IC520N |

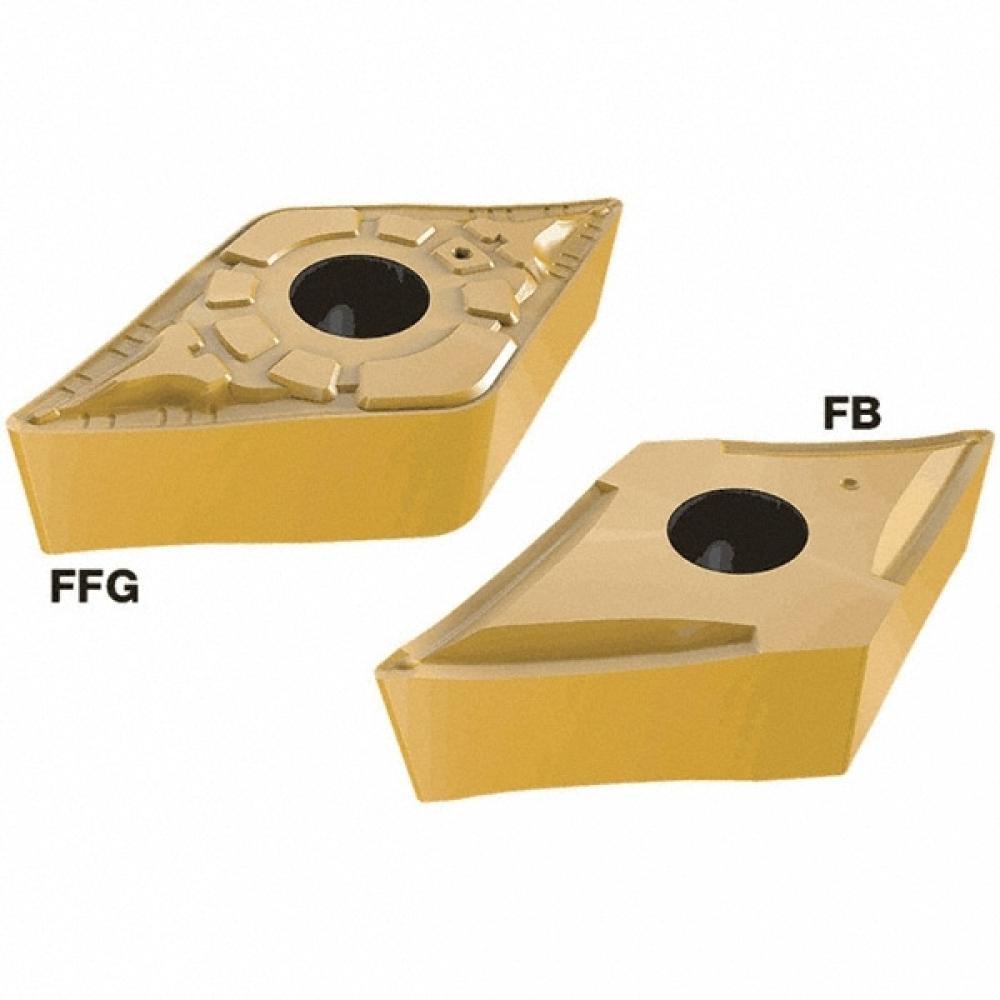

| Long Description | Double-sided 55° rhombic cermet grade inserts, for semi-finishing and finishing applications on steel and cast iron. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Country of Origin | Korea |
| Base Item Number | Turning Indexable Inserts |
| Family Short Description | Double-Sided 55° Rhombic Cermet Grade Inserts for Semi-Finishing and Finishing Applications |
| Height | 0.47 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.15 OZ |
| Width | 1.69 Inch |
| APP1Name | Ext. 55° Diamond 62.5° Approac |
| FamilyName | DNMG-CERMET |
| Weight (OZ) | 0.15309 |
| Width (Inch) | 1.69 |
| Cutting Edge Material | Cermet |
| Measurement Type | Inch |
