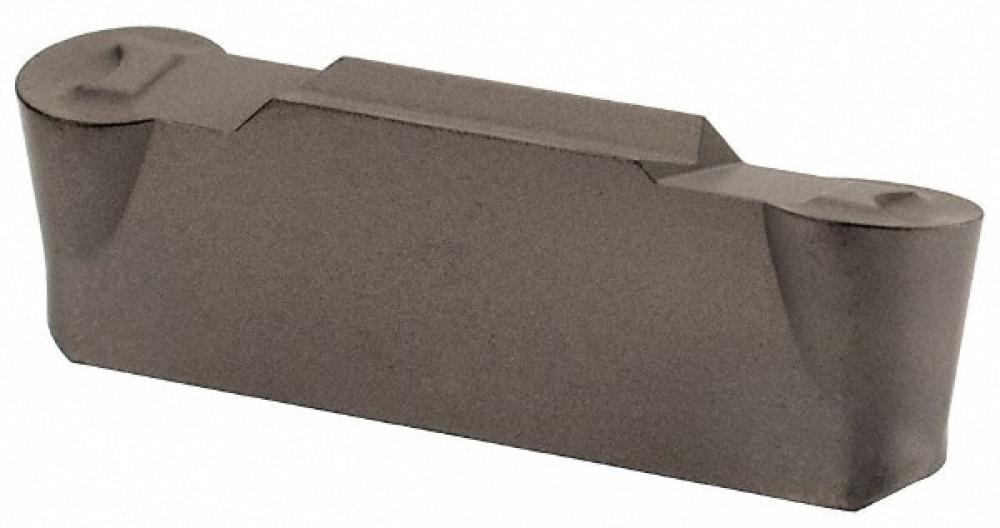

Iscar
6200051
HFPL 4020 IC20
Specifications
| Long Description | Utility double-ended full radius face machining inserts |
|---|---|
| Short Description | ISCAR HFPL-4020 IC20 CARB FACE GRV INSERT W.157 W/FULL RAD |
| Insert Width | 0.1570 |
| Insert Designation | HFPL |
| APP1Name | Face Grooving |
| FamilyName | HFPR/L (full radius) |
| COO | Israel |
| Work Material | Stainless Steel+Hi Temp+Hardened Metals+Cast Iron+Aluminum and Non Ferrous |
| Coating | Uncoated |
| External/Internal | External |
| Weight (OZ) | 0.18695 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Radius | 0.0790 |
