Iscar
6200313

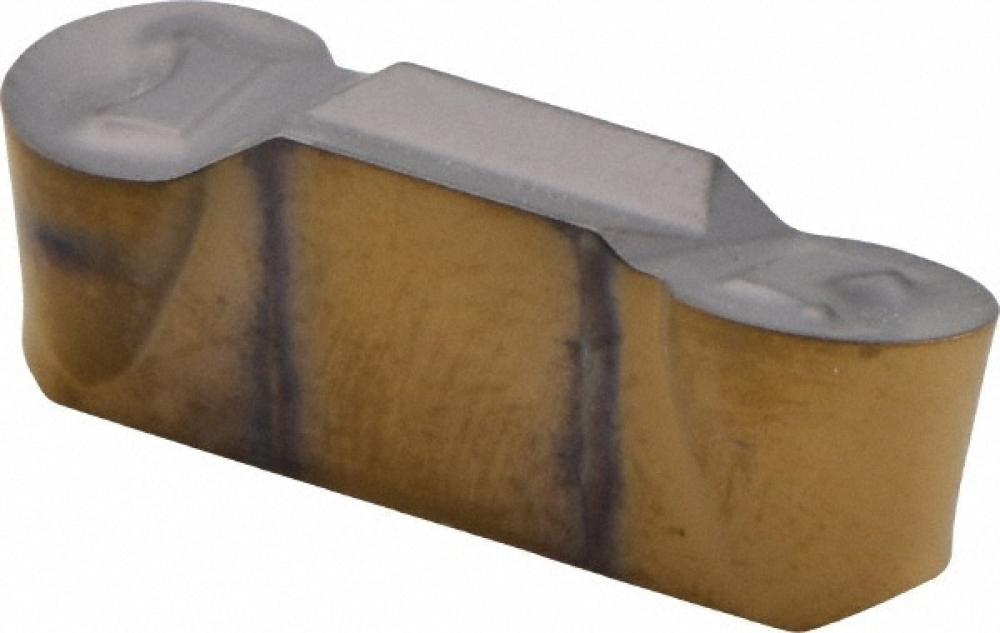

HFPL 6030 IC808
Specifications
| Long Description | Utility double-ended full radius face machining inserts |
|---|---|
| Short Description | ISCAR HFPL-6030 IC808 CARB FACE GRV INSERT W.236 W/FNR |
| Insert Width | 0.2360 |
| Insert Designation | HFPL |
| APP1Name | Face Grooving |
| FamilyName | HFPR/L (full radius) |
| COO | Israel |
| Work Material | Stainless Steel+Hi Temp+Steel+Hardened Metals+Cast Iron |
| Coating | TiAlN+AlTiN+TiN |
| External/Internal | External |
| Weight (OZ) | 0.26102 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Radius | 0.1180 |
