Iscar
6200328
GRIP 5008Y IC808
Specifications

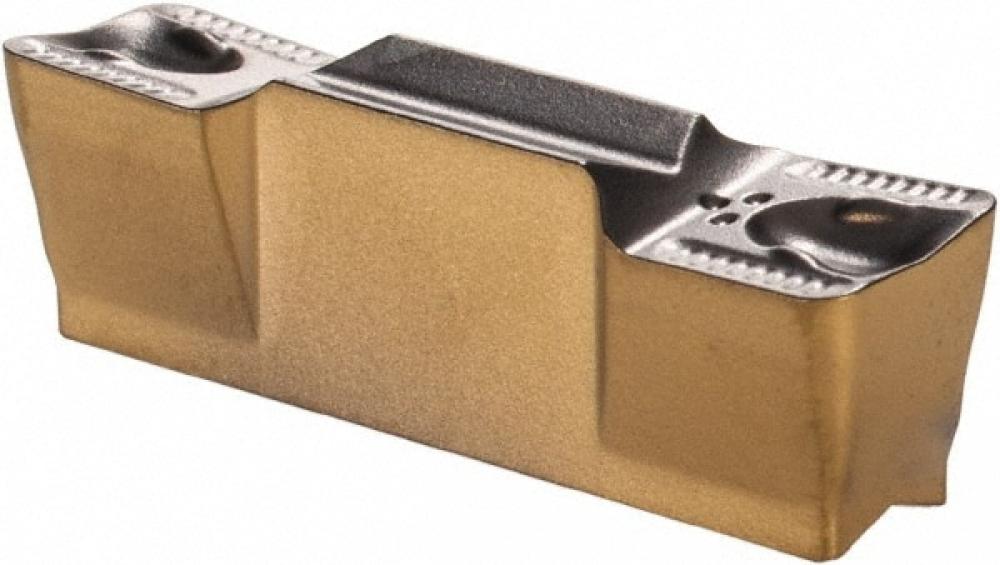

| Long Description | Double-ended inserts, for turning & grooving in external, internal and face applications. |
|---|---|
| Short Description | ISCAR GRIP 5008Y IC808 HELIGRIP GRV INSERT W.197 R.031 |
| Insert Width | 0.1970 |
| Min. Turning Feed | 0.0091 |
| Insert Designation | GRIP |
| APP1Name | Ext. Grooving |
| FamilyName | GRIP |
| Max. Turning Feed | 0.0138 |
| COO | Israel |
| Work Material | Stainless Steel+Hi Temp+Steel+Hardened Metals+Cast Iron |
| Coating | TiAlN+AlTiN+TiN |
| Weight (OZ) | 0.22575 |
| Width (Inch) | 1.57 |
| Corner Radius | 0.0310 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
