Iscar
6400410

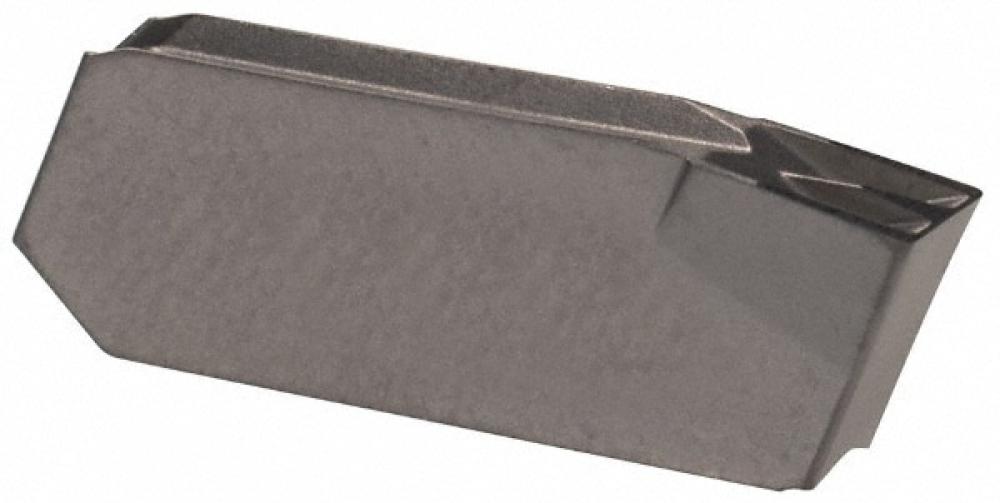

GIM 3C IC20
Specifications
| Long Description | First choice for the parting of bars, hard materials and tough applications. A positive rake, single cavity with negative land and shoulders, provides extra cutting-edge strength. Medium-to-high feeds. |
|---|---|
| Short Description | GIM-3C IC-20 ISCAR INSERT |
| Insert Width | 0.1180 |
| Insert Designation | GIM |
| APP1Name | T Slotting |
| FamilyName | GIM-C |
| COO | Israel |
| Work Material | Stainless Steel+Hi Temp+Hardened Metals+Cast Iron+Aluminum and Non Ferrous |
| Coating | Uncoated |
| External/Internal | External |
| Weight (OZ) | 0.15168 |
| Width (Inch) | 1.57 |
| Corner Radius | 0.0090 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
