Iscar
6400962
GIP 5.00E-0.60 IC20
Specifications

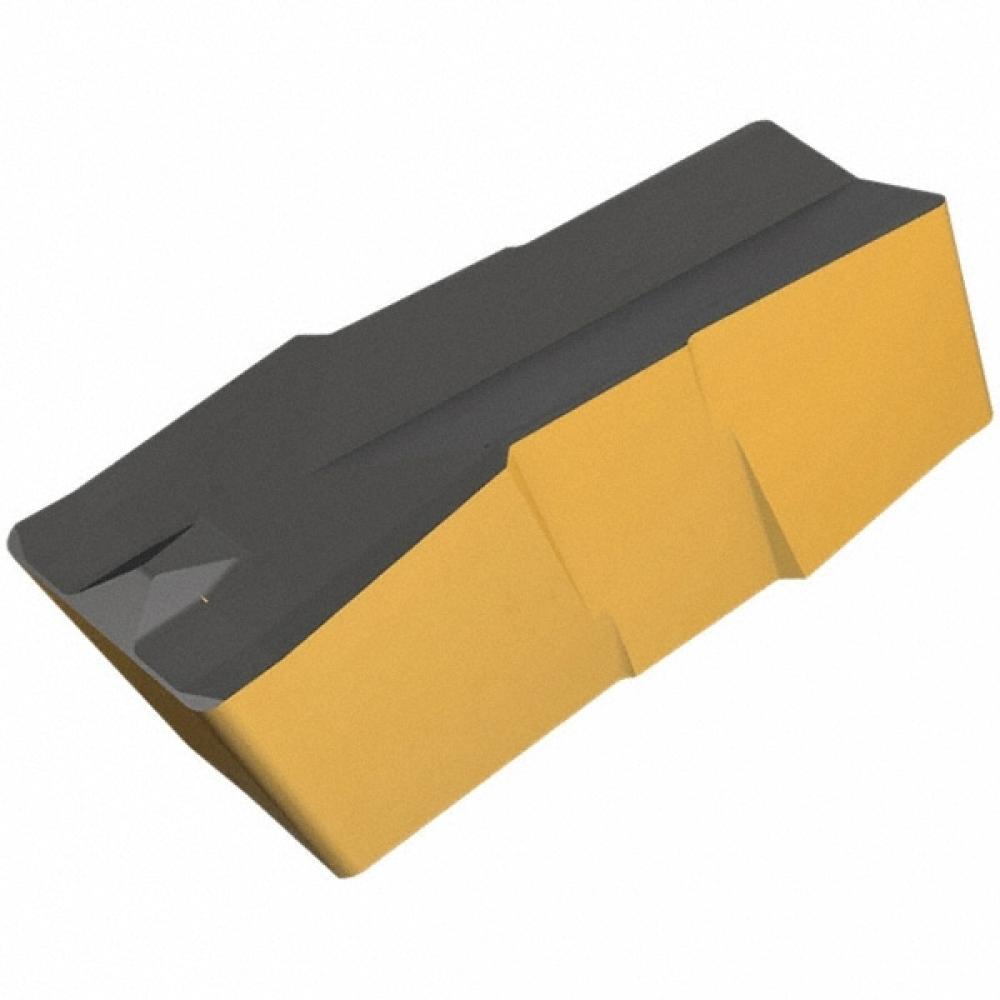

| Long Description | Precision, double-ended inserts for turning and grooving. P-type chipformer, medium-to-high feeds. |
|---|---|
| Short Description | ISCAR GIP-5.00E-0.60 IC20 CARB GRV INSERT W.197 R.024 |
| Insert Width | 0.1970 |
| Min. Turning Feed | 0.0091 |
| Insert Designation | GIP |
| APP1Name | T Slotting |
| FamilyName | GIP-E |
| Max. Turning Feed | 0.0138 |
| COO | Israel |
| Work Material | Stainless Steel+Hi Temp+Hardened Metals+Cast Iron+Aluminum and Non Ferrous |
| Coating | Uncoated |
| External/Internal | External |
| Weight (OZ) | 0.21164 |
| Width (Inch) | 1.57 |
| Corner Radius | 0.0240 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
