Iscar
6401172
GIP 6.35E-3.18 IC20
Specifications

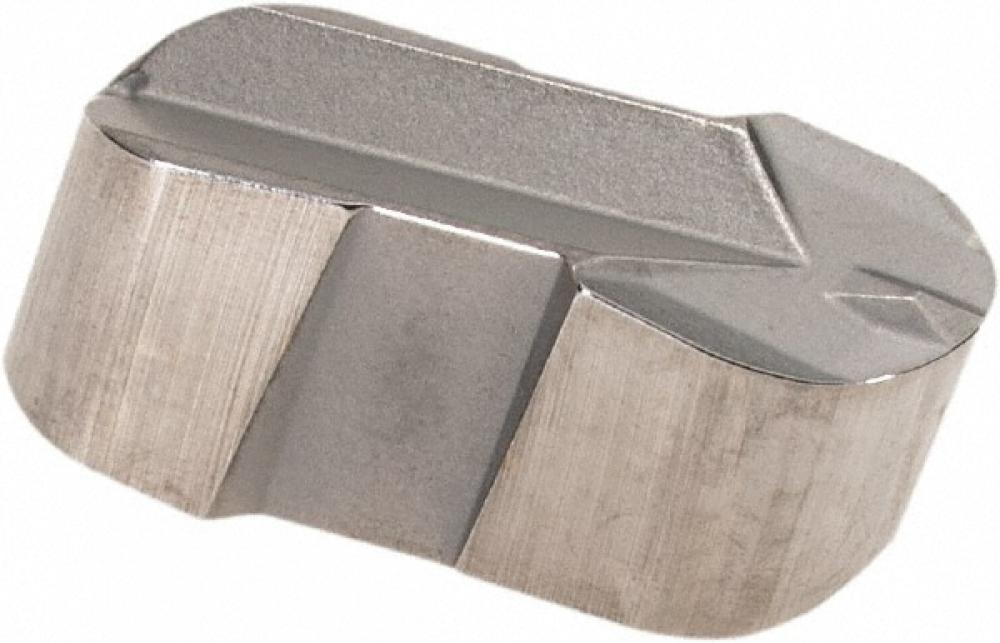

| Long Description | Precision double-ended full radius inserts for profiling and grooving |
|---|---|
| Short Description | ISCAR GIP-6.35E-3.18 IC20 CARB GRV INSERT W.250 FULL RAD |
| Insert Width | 0.2500 |
| Min. Turning Feed | 0.0114 |
| Insert Designation | GIP |
| APP1Name | Ext. Grooving |
| FamilyName | GIP-E (full radius) |
| Max. Turning Feed | 0.0224 |
| COO | Israel |
| Work Material | Stainless Steel+Hi Temp+Hardened Metals+Cast Iron+Aluminum and Non Ferrous |
| Coating | Uncoated |
| External/Internal | External |
| Weight (OZ) | 0.2963 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Radius | 0.1250 |
