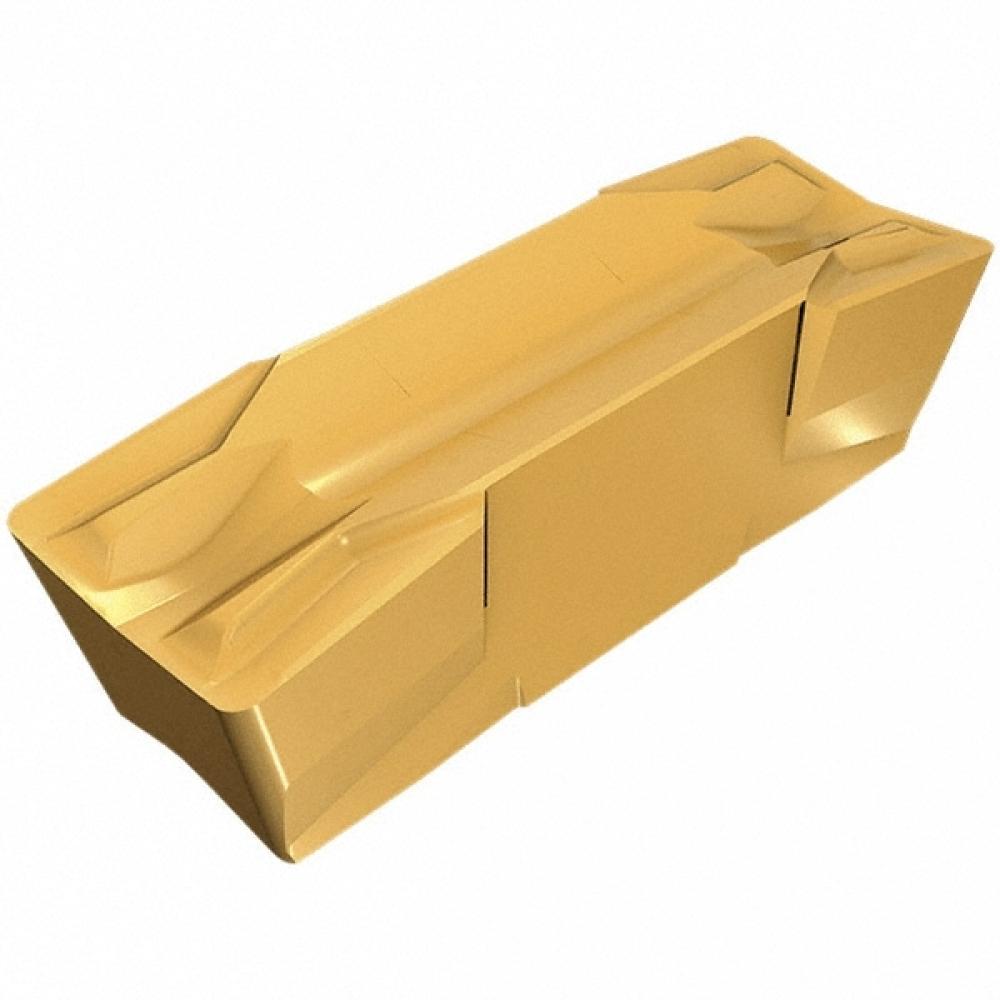

Iscar
6401615
GIF 10.00E-0.80 IC428
Specifications
| Long Description | Precision inserts for heavy-duty machining. Double-ended, F-type chipformer, medium-to-high feeds. |
|---|---|
| Short Description | GIF-10.00E-0.80-IC428 ISCAR CG "E" TURNING INSERTS |
| Insert Width | 0.3940 |
| Min. Turning Feed | 0.0138 |
| Insert Designation | GIF |
| APP1Name | Ext. Grooving |
| FamilyName | GIF-E (W=.315,.394) |
| Max. Turning Feed | 0.0256 |
| COO | Israel |
| Work Material | Steel+Hardened Metals+Cast Iron |
| Coating | TiC+Al2O3 |
| External/Internal | External |
| Weight (OZ) | 1.06173 |
| Width (Inch) | 1.57 |
| Corner Radius | 0.0310 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
