Iscar
6402017

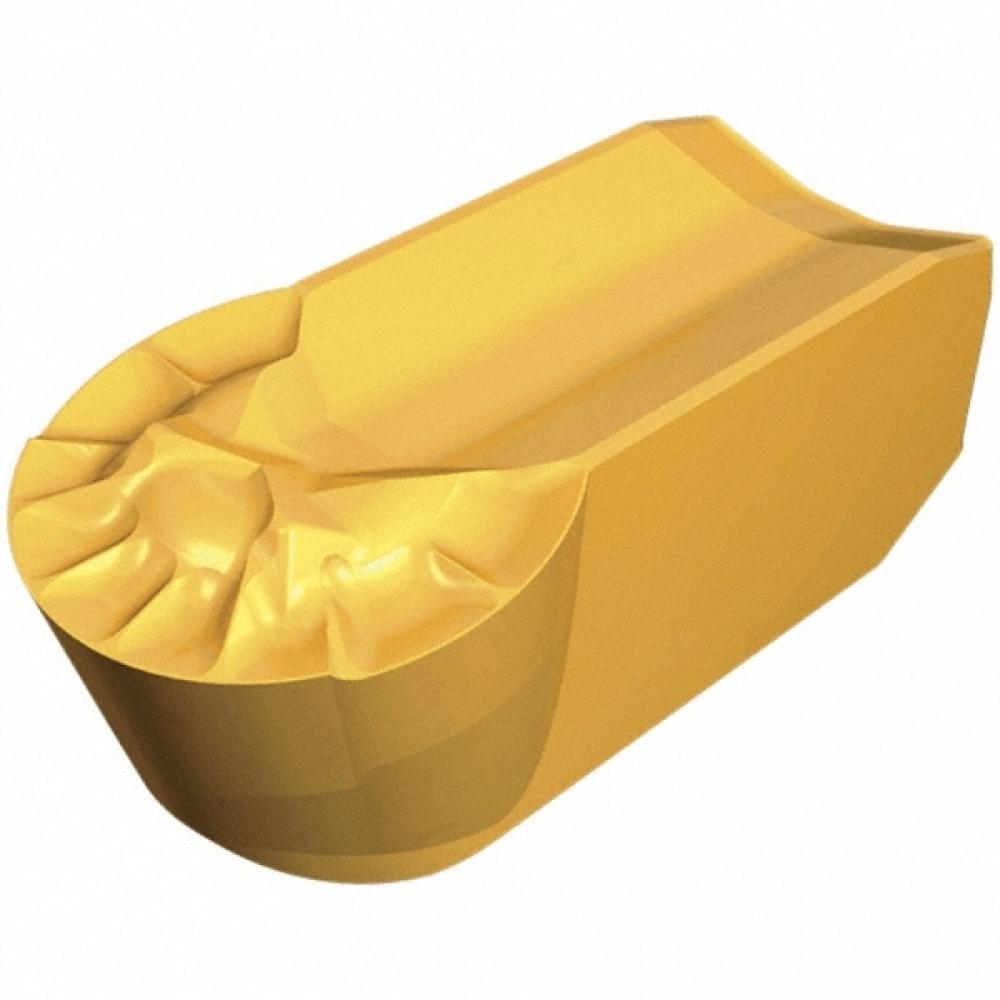

GIMY 1260 IC20
Specifications
| Long Description | Utility single-ended inserts Y-type chipformers, used for deep external grooving and turning at low-to-medium feeds. The full radius inserts can cut arcs to 250s. |
|---|---|
| Short Description | GIMY-1260-IC20 ISCAR CG "M" TYPE INSERTS |
| Insert Width | 0.4720 |
| Min. Turning Feed | 0.0165 |
| Insert Designation | GIMY |
| APP1Name | Ext. Grooving |
| FamilyName | GIMY 1260 |
| Max. Turning Feed | 0.0339 |
| COO | Israel |
| Work Material | Stainless Steel+Hi Temp+Hardened Metals+Cast Iron+Aluminum and Non Ferrous |
| Coating | Uncoated |
| External/Internal | External (External / Internal) |
| Weight (OZ) | 0.98765 |
| Width (Inch) | 2.2 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Radius | 0.2360 |
