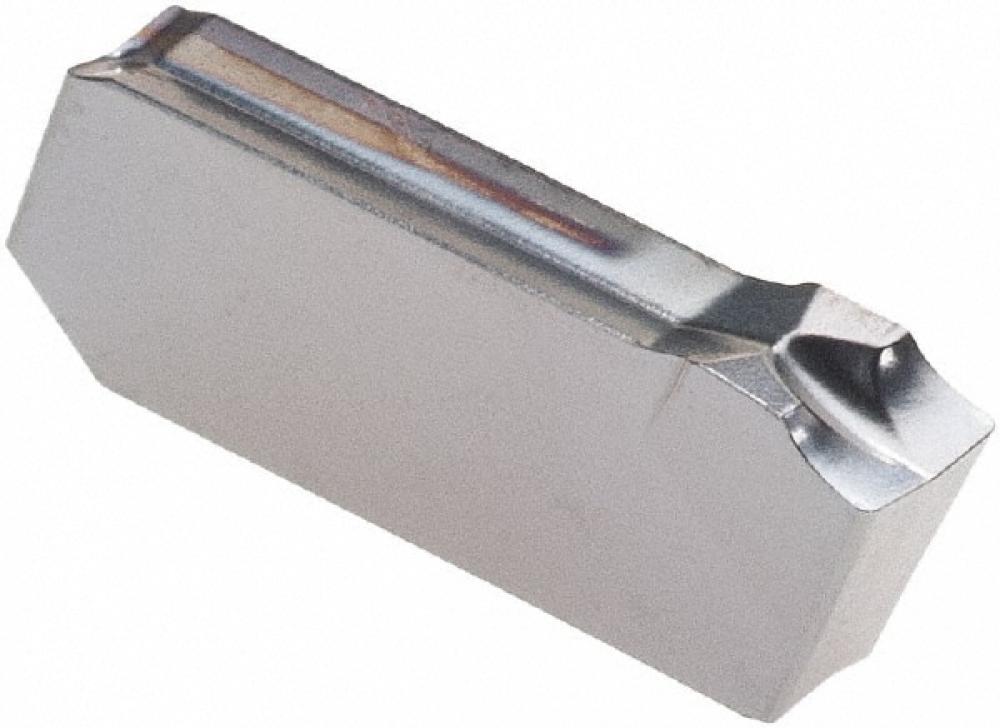

Iscar
6402139
GIM 3J IC354
Specifications
| Long Description | First choice for soft materials, parting of tubes, small diameters and thin-walled parts. General applications on low carbon, alloy and austenitic stainless steel. Low-to-medium feeds. |
|---|---|
| Short Description | GIM-3J-IC354 ISCAR CG "M" TYPE INSERTS |
| Insert Width | 0.1180 |
| Insert Designation | GIM |
| APP1Name | T Slotting |
| FamilyName | GIM-J |
| COO | Israel |
| Work Material | Stainless Steel+Steel |
| Coating | TiCN |
| External/Internal | External |
| Weight (OZ) | 0.14815 |
| Width (Inch) | 1.57 |
| Corner Radius | 0.0100 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
