Iscar
6402290

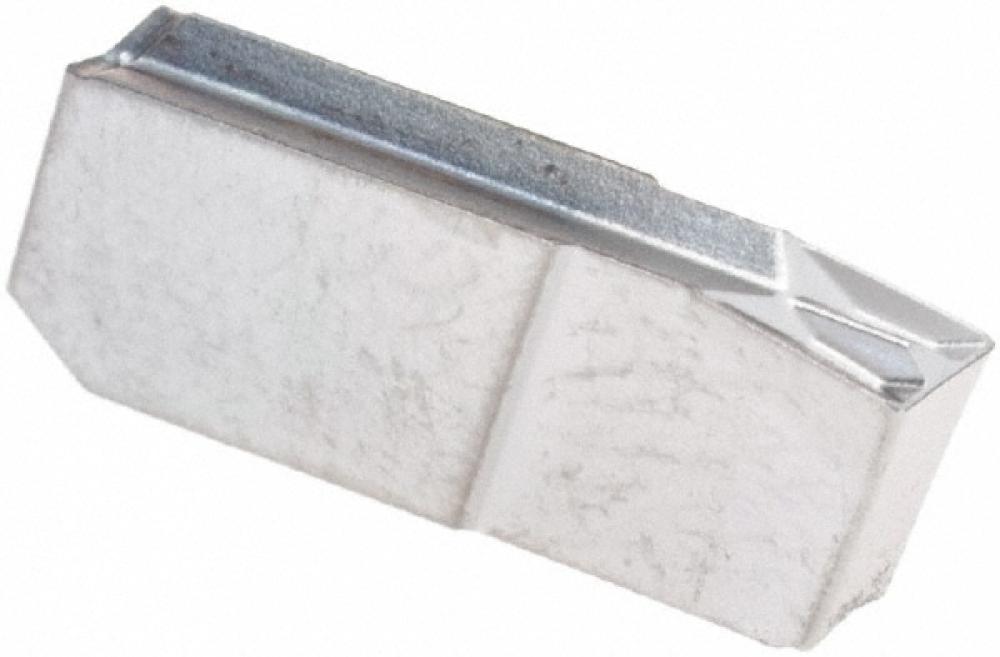

GIM 2.4 IC354
Specifications
| Long Description | Parting & grooving single-sided insert. W-type chipformer, with a center ridge that forms double cavities on the rake face. Most efficient on alloy steel. |
|---|---|
| Short Description | ISCAR GIM-2.4 IC354 CUT-GRIP INSERT W.095 R.007 SNGL-ENDED |
| Insert Width | 0.0940 |
| Insert Designation | GIM |
| APP1Name | T Slotting |
| FamilyName | GIM-W |
| COO | Israel |
| Work Material | Stainless Steel+Steel |
| Coating | TiCN |
| External/Internal | External |
| Weight (OZ) | 0.14462 |
| Width (Inch) | 1.57 |
| Corner Radius | 0.0070 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
