Iscar
6402613

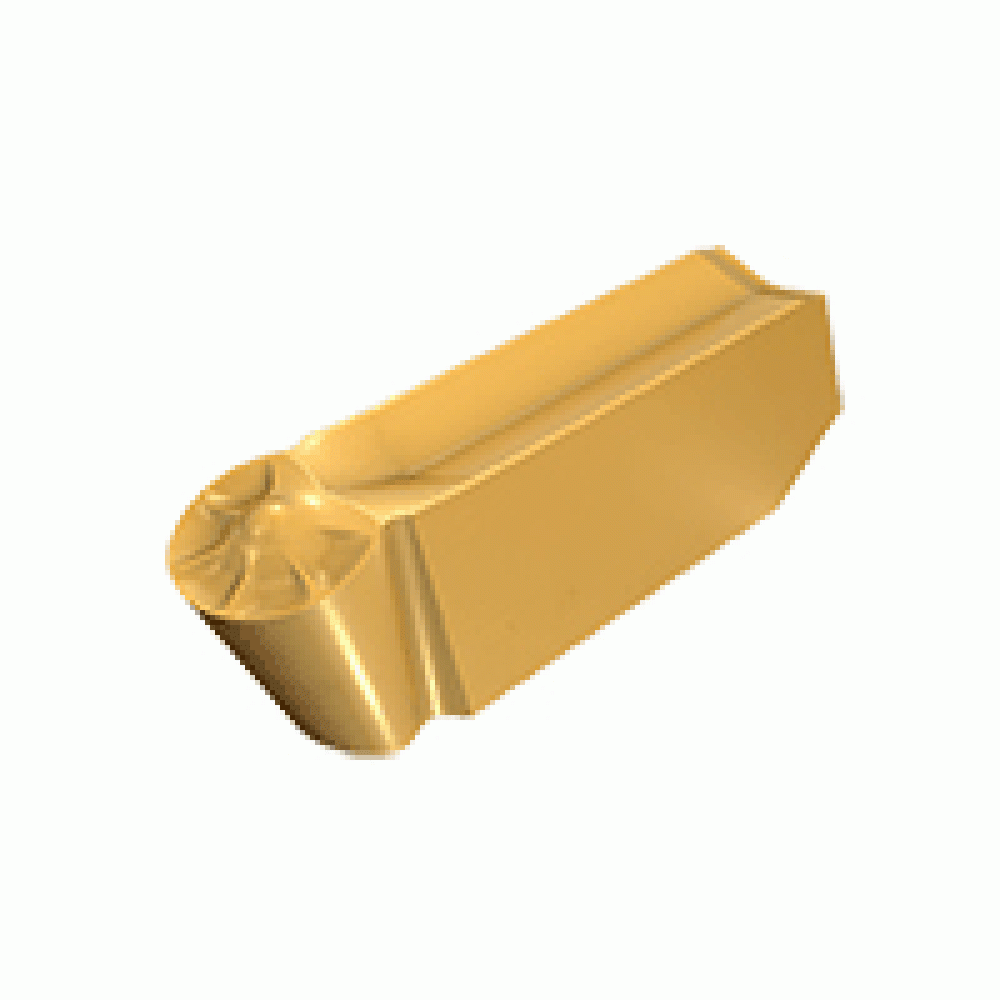

GIPY 4.00-2.00 IC320
Specifications
| Long Description | Full radius, precision, sharp-edged inserts for external profiling of high temperature alloys. Can cut arcs to 250°, Y-type chipformer for low-to-medium feeds. |
|---|---|
| Short Description | ISCAR GIPY 4.00-2.00 IC320 INSERT |
| Min. Turning Feed | 0.0087 |
| Insert Designation | GIPY |
| APP1Name | Ext. Grooving |
| FamilyName | GIPY |
| Max. Turning Feed | 0.0146 |
| COO | Israel |
| Work Material | Hi Temp |
| Coating | TiCN |
| Weight (OZ) | 0.194 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Radius | 0.0790 |
