Iscar
6402809

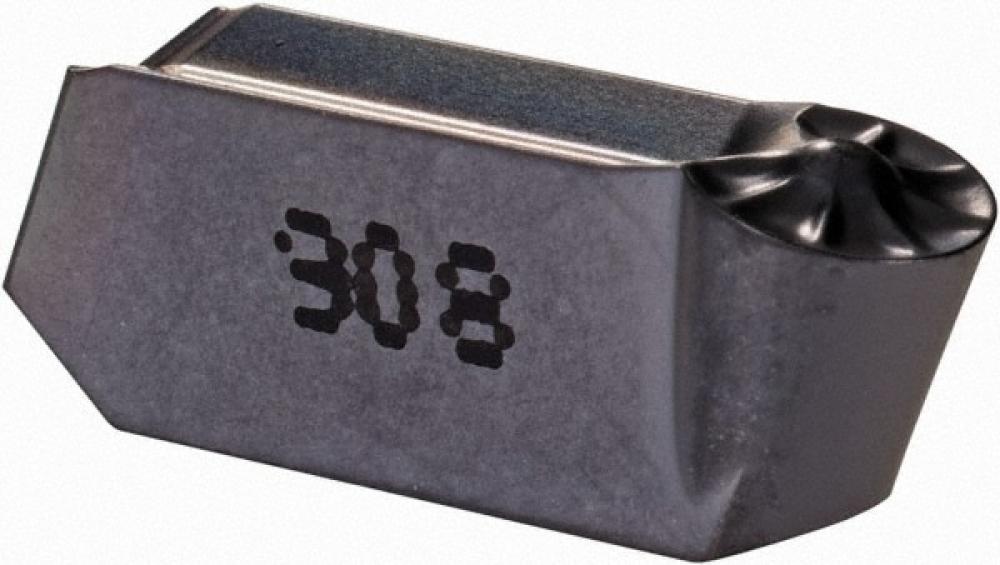

GIMY 525 IC908
Specifications
| Long Description | Utility single-ended inserts with F/Y-type chipformers, used for deep grooving and turning at low-to-medium feeds. The full-radius inserts can cut arcs to 250 . |
|---|---|
| Short Description | GIMY 525 IC908 ISCAR INSERT |
| Insert Width | 0.1970 |
| Min. Turning Feed | 0.0091 |
| Insert Designation | GIMY |
| APP1Name | Ext. Grooving |
| FamilyName | GIMY (full radius) |
| Max. Turning Feed | 0.0165 |
| COO | Israel |
| Work Material | Stainless Steel+Hi Temp+Steel+Hardened Metals+Cast Iron |
| Coating | TiAlN |
| External/Internal | External (External / Internal) |
| Weight (OZ) | 0.23633 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Radius | 0.0980 |
