Iscar
6403199

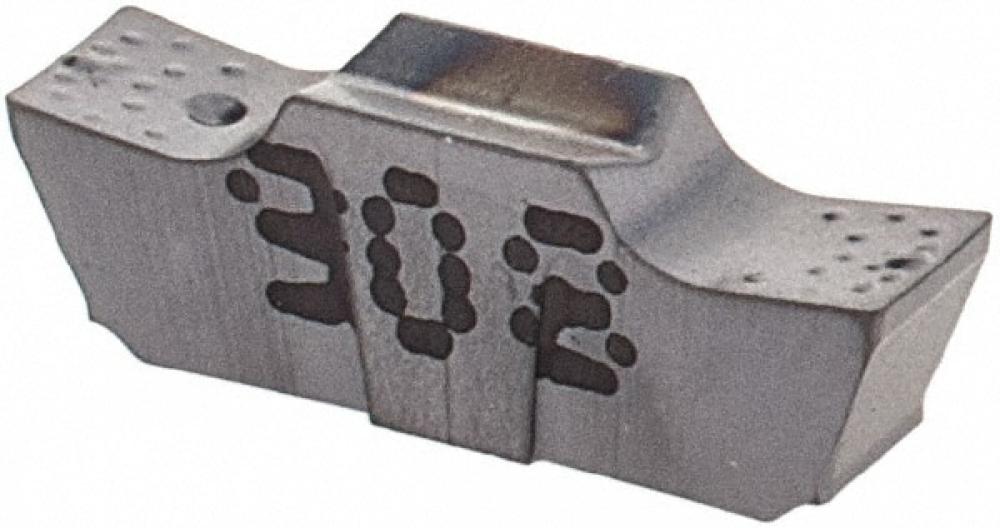

GEPI 2.39-0.15 IC908
Specifications
| Long Description | Precision double ended inserts, for internal and external grooving at low feeds in diameters from .453". |
|---|---|
| Short Description | ISCAR GEPI-2.39-0.15 IC908 CARB GRV INSERT W.094 R.006 |
| Insert Width | 0.0940 |
| Min. Turning Feed | 0.0028 |
| Insert Designation | GEPI |
| APP1Name | Ext. Grooving |
| FamilyName | GEPI |
| Max. Turning Feed | 0.0035 |
| COO | Israel |
| Work Material | Stainless Steel+Hi Temp+Steel+Hardened Metals+Cast Iron |
| Coating | TiAlN |
| Weight (OZ) | 0.0776 |
| Width (Inch) | 1.57 |
| Corner Radius | 0.0060 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
