Iscar
6403321

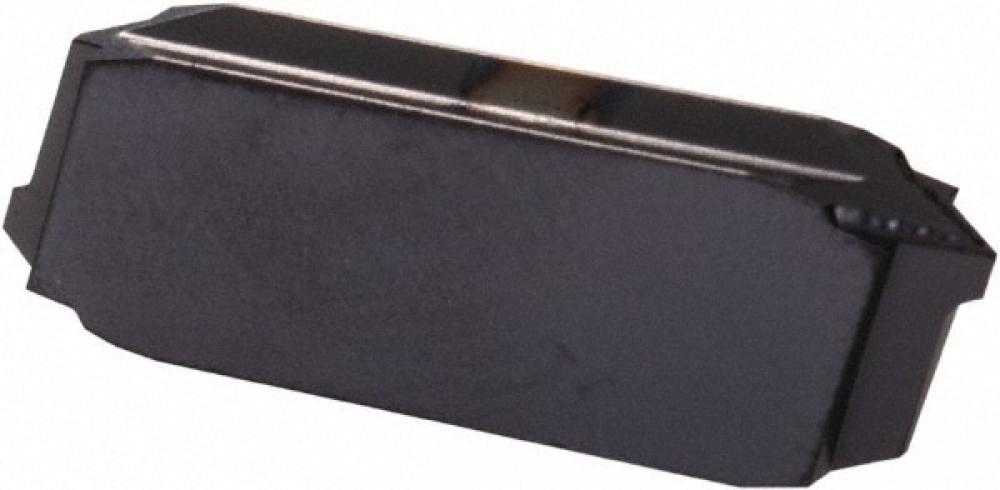

TIP 2P14-NPT IC908
Specifications
| Long Description | Precision ground, NPT (National Pipe Threads) full profile, double-ended, external threading inserts with a chipformer. Used for steam, gas and water pipes. |
|---|---|
| Short Description | ISCAR TIP 2P14-NPT IC908 |
| Insert Designation | TIP |
| Insert Hand | Neutral |
| Material | Carbide |
| APP1Name | Threading (Ext.) Groove Turn T |
| FamilyName | TIP-P-NPT |
| Threads per Inch | 14.0 |
| Coating/Finish | TiAlN |
| COO | Switzerland |
| Grade | IC908 |
| External/Internal | External |
| Weight (OZ) | 0.15168 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
