Iscar
6403359
GEPI 2.5-MT0.05 IC908
Specifications

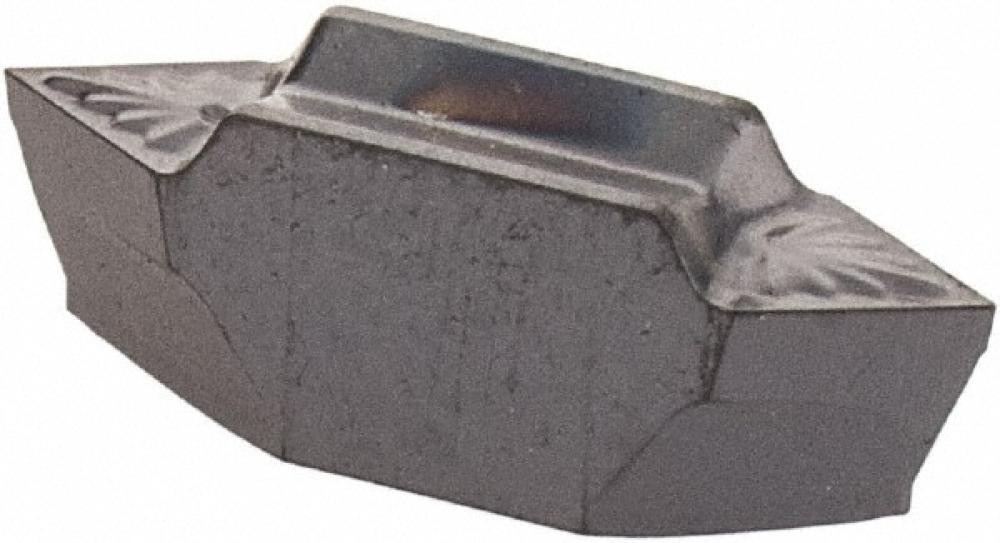

| Long Description | Precision ground internal double-ended threading inserts with a 60° partial profile for general applications. Minimum bore diameter .453". |
|---|---|
| Short Description | GEPI-2.5-MT0.05-IC908 ISCAR INSERT |
| Insert Designation | GEPI |
| Insert Hand | Neutral |
| Material | Carbide |
| APP1Name | Threading (Ext.) Groove Turn T |
| FamilyName | GEPI-MT |
| Coating/Finish | TiAlN |
| COO | Switzerland |
| Grade | IC908 |
| Weight (OZ) | 0.07055 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
