Iscar
6403390

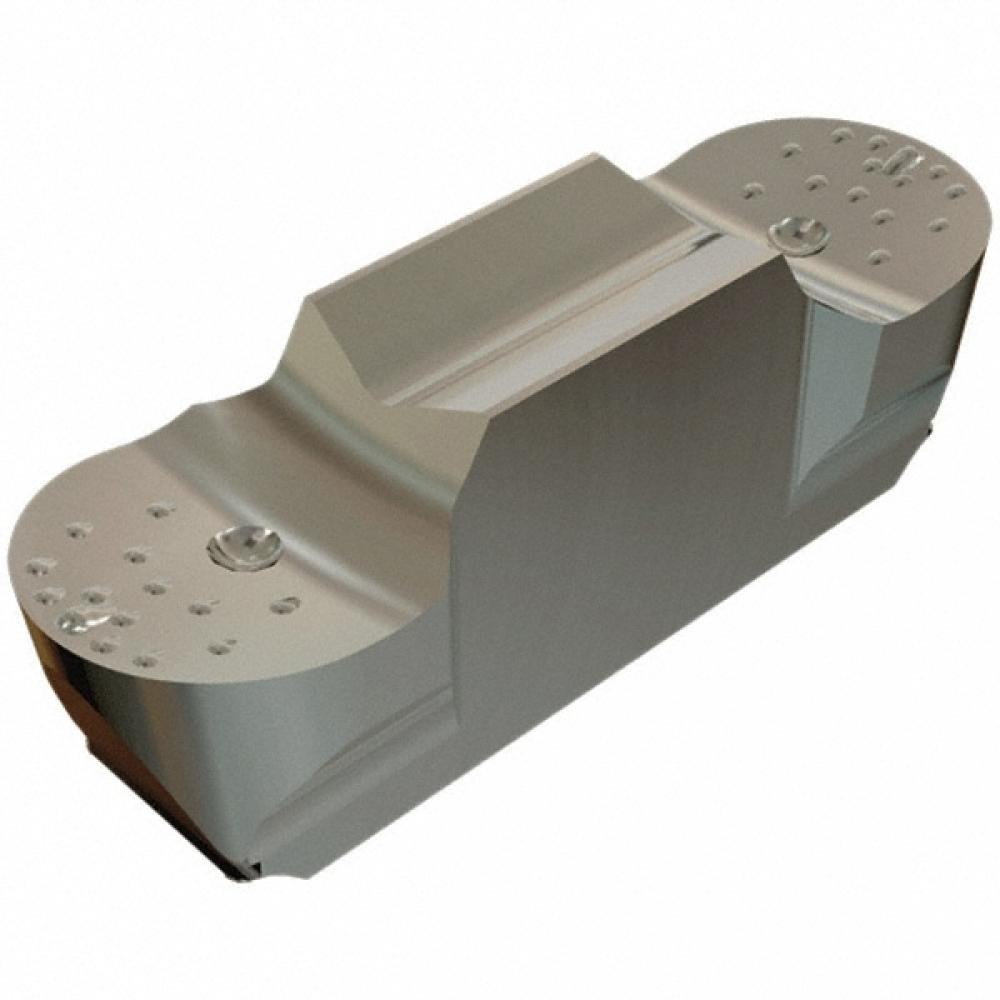

GEPI 2.00-1.00 IC08
Specifications
| Long Description | Precision double-ended inserts, used for internal and external profiling and grooving at low feeds in diameters from .453". |
|---|---|
| Short Description | GEPI 2.00-1.00 IC08 ISCAR INSERT |
| Insert Width | 0.0790 |
| Min. Turning Feed | 0.0031 |
| Insert Designation | GEPI |
| APP1Name | Ext. Grooving |
| FamilyName | GEPI (full radius) |
| Max. Turning Feed | 0.0047 |
| COO | Israel |
| Work Material | Stainless Steel+Hi Temp+Aluminum and Non Ferrous |
| Coating | Uncoated |
| Weight (OZ) | 0.07407 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Radius | 0.0390 |
