Iscar
6404057
TAGB 840Y IC807
Specifications

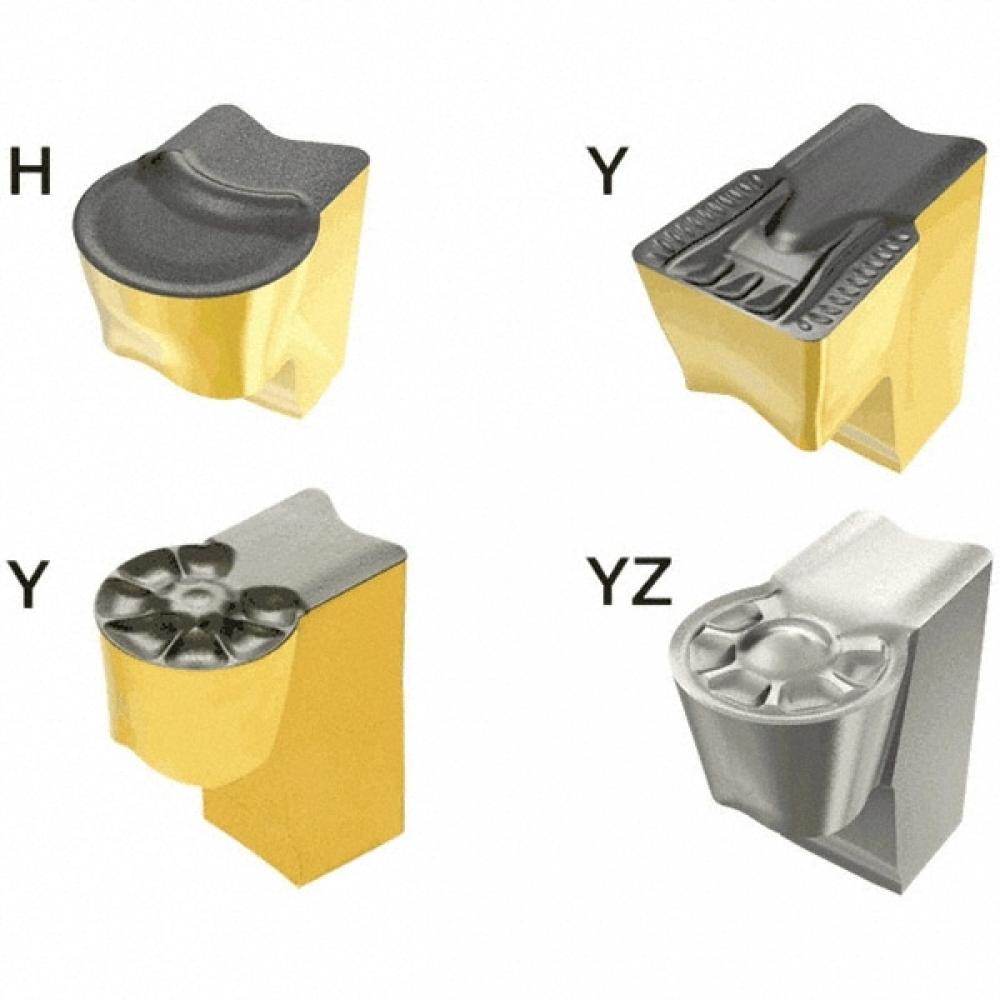

| Long Description | Grooving turning and parting wide single-ended inserts. Used for tough applications and hard materials. A positive rake, single cavity with negative land and shoulders, provide extra cutting-edge strength. Medium-to-high feeds. |
|---|---|
| Short Description | TAGB-840Y-IC807 ISCAR SUMOGRIP FOR SIDE TURNING INS. |
| Insert Width | 0.3150 |
| Min. Turning Feed | 0.0094 |
| APP1Name | Ext. Grooving |
| FamilyName | TAGB/TAGBA |
| Max. Turning Feed | 0.0264 |
| COO | Israel |
| Work Material | Stainless Steel+Hi Temp+Steel+Hardened Metals+Cast Iron |
| Coating | TiAlN+TiN |
| Weight (OZ) | 0.41623 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Radius | 0.1570 |
