Iscar
6404087

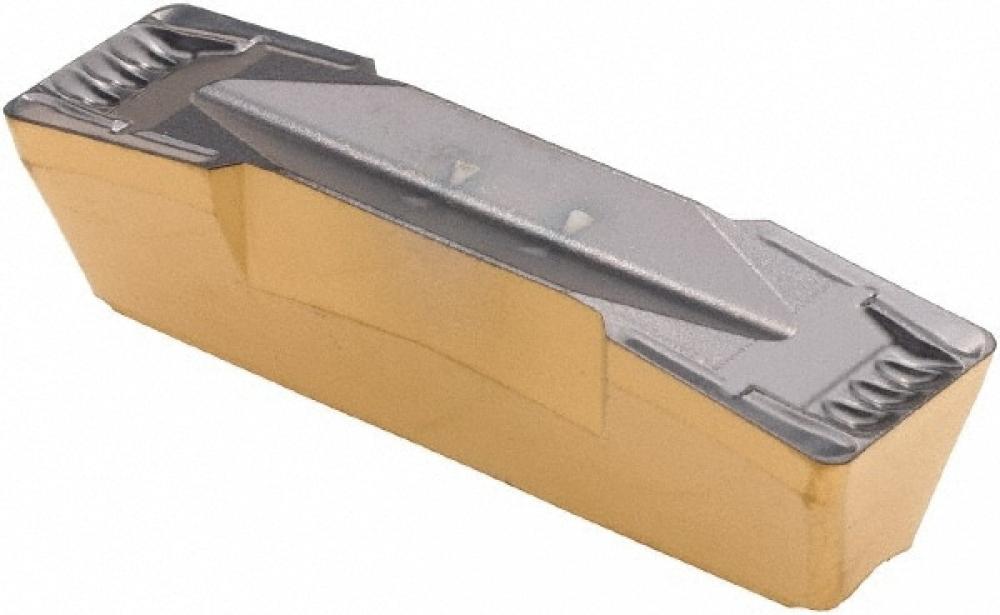

GDMY 808 IC808
Specifications
| Long Description | Utility, double-ended inserts. Used for heavy duty turning, profiling and grooving. Maximum machining depth is 1.063". |
|---|---|
| Short Description | ISCAR GDMY-808 IC808 CARB GRV INSERT W.315 R.031 |
| Insert Width | 0.3150 |
| Min. Turning Feed | 0.0126 |
| Insert Designation | GDMY |
| APP1Name | Ext. Grooving |
| FamilyName | GDMY |
| Max. Turning Feed | 0.0220 |
| COO | Israel |
| Work Material | Stainless Steel+Hi Temp+Steel+Hardened Metals+Cast Iron |
| Coating | TiAlN+AlTiN+TiN |
| External/Internal | External |
| Weight (OZ) | 0.71958 |
| Width (Inch) | 2.24 |
| Corner Radius | 0.0310 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
