Iscar
6404309

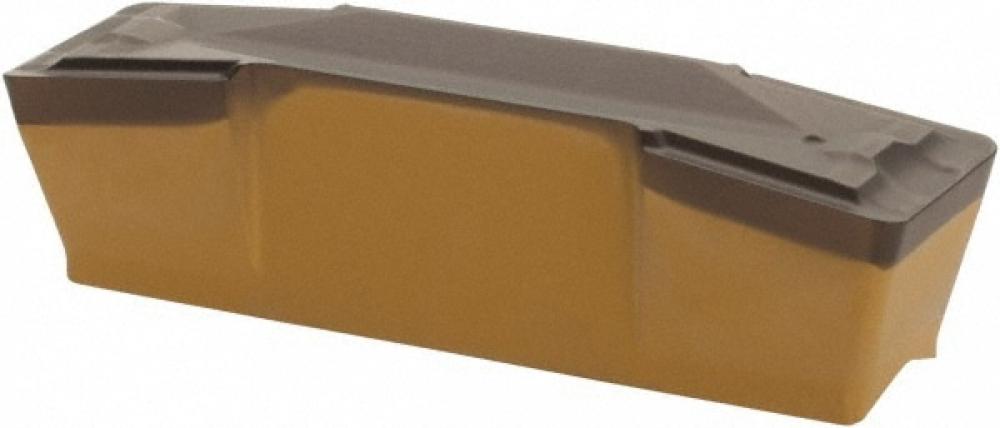

GDMN 808 IC8250
Specifications
| Long Description | Utility inserts for heavy duty turning and grooving of ductile materials at low to medium feeds. |
|---|---|
| Short Description | GDMN-808-IC8250 ISCAR CG "M" TYPE INSERTS |
| Insert Width | 0.3150 |
| Min. Turning Feed | 0.0079 |
| Insert Designation | GDMN |
| APP1Name | Ext. Grooving |
| FamilyName | GDMN |
| Max. Turning Feed | 0.0138 |
| COO | Israel |
| Work Material | Stainless Steel+Steel |
| Coating | TiCN+Al2O3+TiN |
| External/Internal | External |
| Weight (OZ) | 0.76543 |
| Width (Inch) | 2.2 |
| Corner Radius | 0.0310 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
