Iscar
6404352

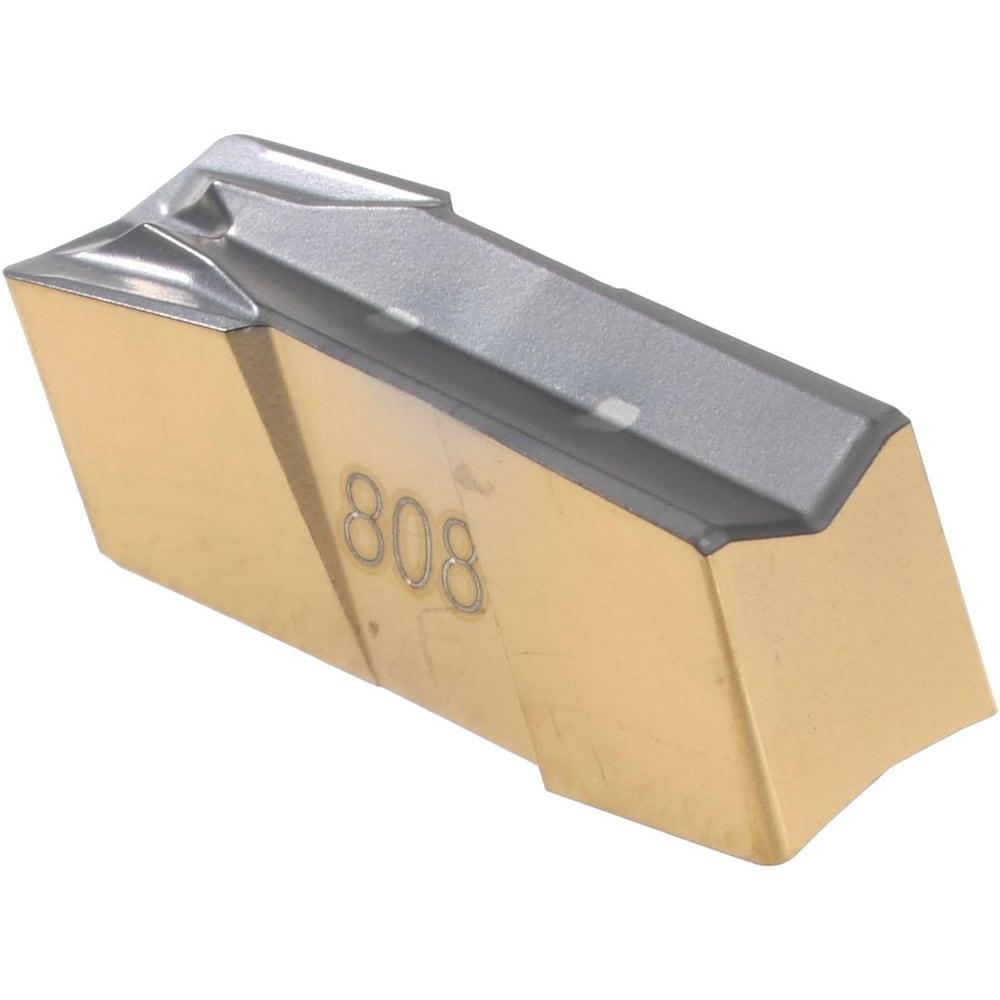

GIF 6.35-0.50 IC808
Specifications
| Long Description | CUT-GRIP precision-ground, double-ended inserts for grooving at low to-medium feeds. |
|---|---|
| Short Description | ISCAR GIF-6.35-0.50 IC808 CARB GRV/TURN INSERT W.250 R.020 |
| Insert Width | 0.2500 |
| Insert Designation | GIF |
| APP1Name | Ext. Grooving |
| FamilyName | GIF |
| COO | Israel |
| Work Material | Stainless Steel+Hi Temp+Steel+Hardened Metals+Cast Iron |
| Coating | TiAlN+AlTiN+TiN |
| Weight (OZ) | 0.30335 |
| Width (Inch) | 1.57 |
| Corner Radius | 0.0200 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
