Iscar
6405015

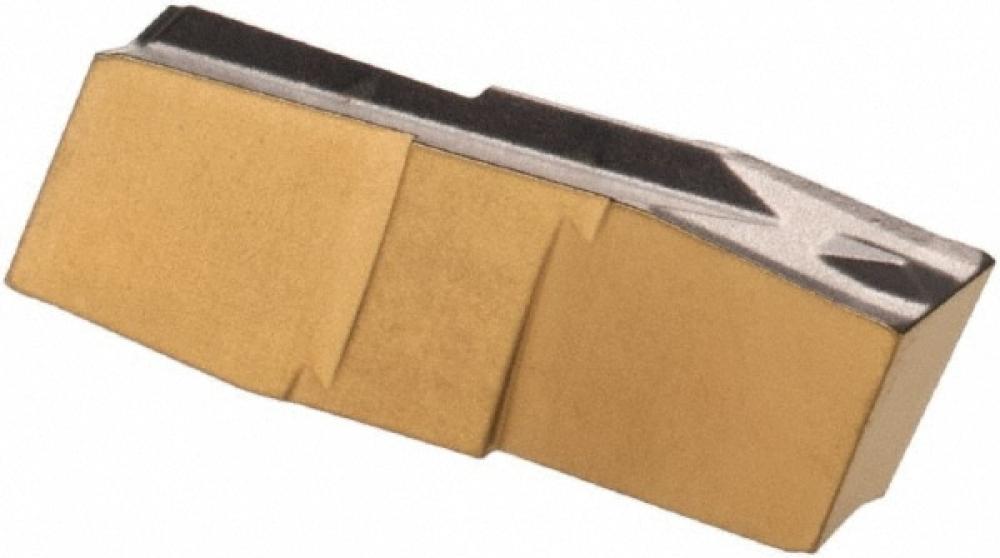

GIP 3.00E-0.00 IC830
Specifications
| Long Description | Precision, double-ended inserts for turning and grooving. P-type chipformer, medium-to-high feeds. |
|---|---|
| Short Description | GIP 3.00E-0.00 IC-830 ISCAR CUTGRIP |
| Insert Width | 0.1180 |
| Min. Turning Feed | 0.0047 |
| Insert Designation | GIP |
| APP1Name | T Slotting |
| FamilyName | GIP-E |
| Max. Turning Feed | 0.0063 |
| COO | Israel |
| Work Material | Stainless Steel+Hi Temp+Steel |
| Coating | AlTiN+TiN |
| External/Internal | External |
| Weight (OZ) | 0.09171 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
