Iscar
6405037

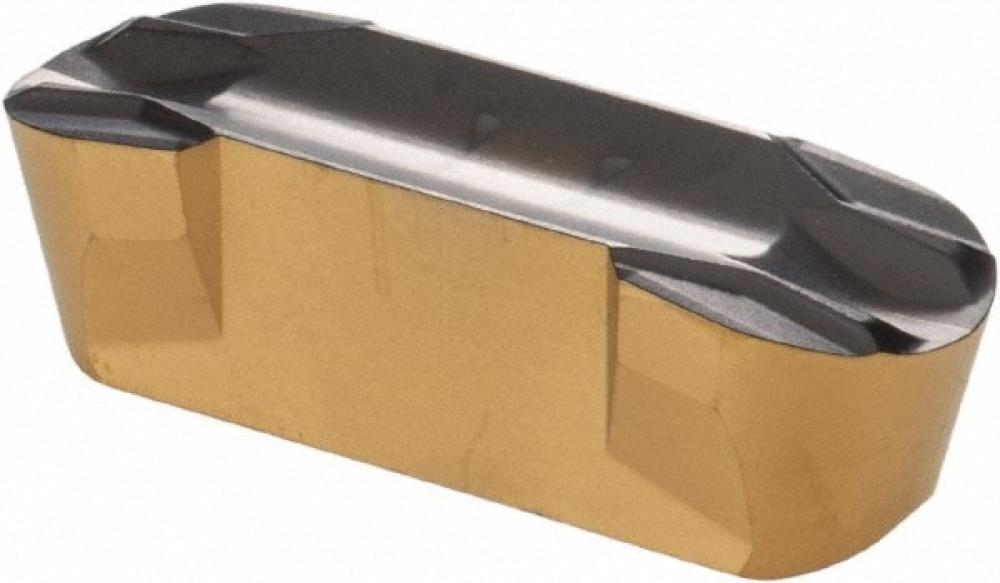

GIF 10.00E-5.00 IC830
Specifications
| Long Description | Precision inserts for heavy-duty machining. Double-ended, F-type chipformer, medium-to-high feeds. |
|---|---|
| Short Description | GIF 10.00E-5.00 IC-635 ISCAR CUTGRI |
| Insert Width | 0.3940 |
| Min. Turning Feed | 0.0138 |
| Insert Designation | GIF |
| APP1Name | Ext. Grooving |
| FamilyName | GIF-E (W=.315,.394 full radius) |
| Max. Turning Feed | 0.0307 |
| COO | Israel |
| Work Material | Stainless Steel+Hi Temp+Steel |
| Coating | AlTiN+TiN |
| Weight (OZ) | 0.96296 |
| Width (Inch) | 2.2 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Radius | 0.1970 |
